DANFOSS變頻器FC-280P3K0T4E20H2BXCXXXSXXXXAX技術參數
Product details | ||
Gross weight | 4.35 Kilogram | |
Net weight | 3.83 Kilogram | |
Volume | 20.16 Liter | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? Midi Drive FC- |
Series | 280 | 280 |
Power Size | P3K0 | 3.0 kW / 4.0 HP |
Voltage | T4 | Three phase 380-480 VAC |
Enclosure | E20 | IP20 / Chassis |
RFI Filter | H2 | EMC Cat C3 (200/400V) |
Brake & Stop | B | Brake chopper |
Display | X | No display |
Coating | C | Coated PCB |
Mains Option | X | No mains options |
Adaptation A | X | No Adaption |
Adaptation B | X | No Adaption |
Special Version | SXXX | Latest release |
Software Language Pack | X | Standard language pack |
Control Card | AX | Standard w. Modbus |
Frame Size | K2 | K2 |
Typecode Part 1 | FC-280P3K0T4E20H2BXC | |
Typecode Part 2 | XXXSXXXXAX | |
Product Catalog | NO_VIEW | NO VIEW |
Calculated Gross Weight [kg] | 3.9 | |
Calculated Net Weight [kg] | 3.6 | |
Intermittent Current (HO) [A] | 11.5 | 11.5 |
Intermittent Current (HO) [A] | 11.5 | 11.5 |
Continuous Current (HO) [A] | 7.2 | 7.2 |
Continuous Current (HO) [A] | 6.3 | 6.3 |
Power Loss HO [W] | 94.8 | 94.8 |
kVA | 5 | 5 |
Power 160% (HO) [KW] | 3 | 3 |
Height [mm] | 272.5 | 272.5 |
Width w/ no C options [mm] | 90 | 90 |
Depth [mm] | 168 | 168 |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-280P3K0T4E20H2BXC | |
Modelcode02 | XXXSXXXXAX | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Recommended Plant | ERR01 | ERR01 |
DANFOSS變頻器FC-280P3K0T4E20H2BXCXXXSXXXXAX介紹
頻率轉換器
FC-280P3K0T4E20H2BXCXXXSXXXXAX
VLT? Midi Drive FC-280
3.0 千瓦 / 4.0 馬力，三相 380-480 VAC
IP20 / 底盤，EMC 類別 C3 (200/400V)
制動斬波器，無顯示器
涂層 PCB，最新發布
標準配備 Modbus
框架：K2
其他選項根據型號代碼
型號代碼：
FC-280P3K0T4E20H2BXCXXXSXXXXAX
注意：FC 280 不包括 LCP 顯示器或內存模塊。LCP 和內存模塊可以作為配件訂購。
注意：用于 VLT2800 的安裝適配器板可作為配件提供。

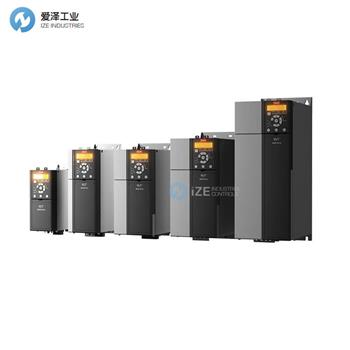

Frequency converter
FC-280P3K0T4E20H2BXCXXXSXXXXAX
VLT? Midi Drive FC-280
3.0 kW / 4.0 HP, Three phase 380-480 VAC
IP20 / Chassis, EMC Cat C3 (200/400V)
Brake chopper, No display
Coated PCB, Latest release
Standard w. Modbus
Frame: K2
Other options according to Model code
Model code:
FC-280P3K0T4E20H2BXCXXXSXXXXAX
Note: The FC 280 does not include an LCP display or Memory Module.
The LCP and the Memory Module can be ordered as an Accessory.
Note: Mounting adapter plates for VLT2800 are available as an Accessory.
DANFOSS變頻器FC-302系列其他常用型號：
DANFOSS FC-280P3K0T4E20H2BXCXXXSXXXXAX
DANFOSS FC-280PK37T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280PK55T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280PK75T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P1K1T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P1K5T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P2K2T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P3K0T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P4K0T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P5K5T4E20H1BXCXXXSFS1XAL
DANFOSS FC-280P7K5T4E20H1BXCXXXSFS1XAL
