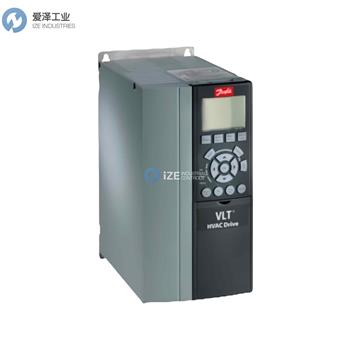

DANFOSS變頻器FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX技術參數
Product details | ||
Gross weight | 7.496 Kilogram | |
Net weight | 6.49 Kilogram | |
Product View (Switch) | GLBL | Global (Standard) |
Product Group | FC- | VLT? AQUA Drive FC- |
Series | 202 | 202 |
Power Rating | P5K5 | (P5K5) 5.5 KW / 7.5 HP |
Phase | T | Three phase |
Mains Voltage | 4 | 380 - 480 VAC |
Enclosure | E20 | (E20) IP20 / Chassis |
RFI Filter | H1 | (H1) RFI Class A1/B (C1) |
Brake - Safe Stop | X | No brake chopper |
LCP | G | Graphical Loc. Cont. Panel |
Coating PCB | C | Coated PCB |
Mains Option | X | No Mains Option |
Adaptation A | X | Standard Cable Entries |
Adaptation B | X | No adaptation |
Software Release | SXXX | Latest release std. SW. |
Software Language Pack | X | Standard Language Pack |
A Option | AX | No A Option |
B Option | BX | No B Option |
C0 Option MCO | CX | No C0 option |
C1 Option | X | No C1 option |
C Option Software | XX | No software option |
D Option | DX | No D option |
Frame Size | A3 | A3 |
Typecode Part 1 | FC-202P5K5T4E20H1XGC | |
Typecode Part 2 | XXXSXXXXAXBXCXXXXDX | |
Product Catalog | NO_VIEW | NO VIEW |
Power 150% (HO) [KW] | 5.5 | 5.5 |
Power 110% (NO) [KW] | 5.5 | 5.5 |
Height [mm] | 268,0 | 268,0 |
Width w/ no C options [mm] | 130,0 | 130,0 |
Width w/ two C options [mm] | 190,0 | 190,0 |
Depth [mm] | 205,0 | 205,0 |
Depth with Option A/B [mm] | 220,0 | 220,0 |
kVA | 9.01 | 9.01 |
Power Loss NO [W] | 187 | 187 |
Power Loss NO [W] | 187 | 187 |
Power Loss HO [W] | 187 | 187 |
Power Loss HO [W] | 187 | 187 |
Continuous Current (NO) [A] | 13 | 13 |
Intermittent Current (NO) [A] | 14.3 | 14.3 |
Continuous Current (NO) [A] | 11 | 11 |
Intermittent Current (NO) [A] | 12.1 | 12.1 |
Continuous Current (HO) [A] | 13 | 13 |
Intermittent Current (HO) [A] | 19.5 | 19.5 |
Continuous Current (HO) [A] | 11 | 11 |
Intermittent Current (HO) [A] | 16.5 | 16.5 |
Calculated Gross Weight [kg] | 7.496 | |
Calculated Package Weight | 1.006 | |
Calculated Net Weight [kg] | 6.49 | |
ECCN EU | Y901 | Y901 |
ECCN US | 3A999.a | 3A999.a |
Vendor | ERR01 | Cannot Determine Vendor |
Recommended Factory | ERR01 | Cannot Determine Vendor |
Modelcode01 | FC-202P5K5T4E20H1XGC | |
Modelcode02 | XXXSXXXXAXBXCXXXXDX | |
Recommended Plant | ERR01 | ERR01 |
DANFOSS變頻器FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX介紹
頻率變換器
型號：FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX
VLT? AQUA Drive FC-202
（P5K5） 5.5 千瓦 / 7.5 馬力，三相，電壓范圍：380 - 480 VAC
防護等級：IP20 / 機箱（E20）
RFI等級：A1/B（C1）
無制動剎車器
帶圖形界面本地控制面板
涂層PCB，無市電選項
采用最新版本標準軟件
機架：A3
無A選項，無B選項
無C1和D選項
其他選項可根據型號代碼定制
型號代碼：
FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX
Danfoss VLT? AQUA Drive專為水和廢水應用設計。憑借豐富的標準和可選功能，VLT? AQUA Drive提供了最低的總擁有成本，非常適合水和廢水行業。
Frequency converter
FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX
VLT? AQUA Drive FC-202
(P5K5) 5.5 KW / 7.5 HP,
Three phase, 380 - 480 VAC,(E20) IP20 / Chassis
(H1) RFI Class A1/B (C1)
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: A3
No A Option, No B Option
No C1 option, No D option
Other options according to Model code
Model code:
FC-202P5K5T4E20H1XGCXXXSXXXXAXBXCXXXXDX
Danfoss VLT? AQUA Drive is dedicated to water and wastewaterapplications. With a wide range of powerful standard and optionalfeatures, the VLT? AQUA Drive provides the lowest overall cost ofownership for water and wastewater applications.
