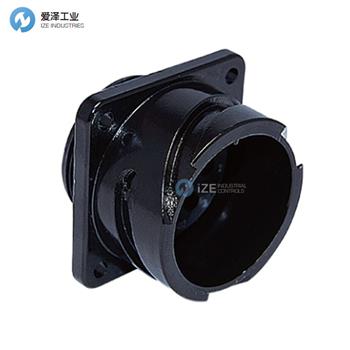

GIMOTA連接器插頭GB210-24-22PN-EAC規格描述
Mechanical properties | |
Size: | 24 |
Contact type: | Pin |
Coding options: | 3 |
Number of contacts, size 8H: | 4 |
Shell material: | Aluminum alloy |
Surface treatment: | Epoxy-polyurethane |
Type of surface: | varnished |
Thickness of surface treatment: | 13-16μ |
Surface colour: | black |
Corrosion resistance (h): | 500 |
Operation temperature: | -55°C - +125°C |
Temperature shock: | -55°C - +125°C |
Conductivity (M?): | non conductive |
EMI: | No |
Coupling-torque to lock (Nm): | max. 6.5 |
Coupling-torque to open (Nm): | min. 2.0 |
Thermal properties | |
Material contact insert: | Ethylene acrylate GXF |
Operating temperature: | -55°C - +150°C |
Electrical properties | |
Operating voltage DC (V): | 1250 |
Operating voltage AC (V): | 900 |
Test voltage AC (V): | 2800 |
Insulation resistance (? m): | ≥ 5000 |
Insulation creepage distance (mm): | ≥ 4.8 |
Voltage class: | MIL-DTL-5015 |
Electrical properties contacts | |
Size 8H - nominal current (A): | 56 |
Size 8H - maximal current (A): | 90 |
Size 8H - test current (A): | 72 |
GIMOTA連接器插頭GB210系列描述
GB210插座符合MIL-DTL-5015和VG95234標準。它們可用于室內和室外應用。
根據所使用的后殼，連接的防水性能可達到IP69K。這些插座已根據IEC EN 60529 IP65 / IP67 / IP68（5巴）和DIN 40050以及IP69K標準進行了戶外使用測試。
對于戶外應用，需要使用帶密封電纜夾的后殼或適用于熱縮形狀的適配器。
這些適用于鐵路的插座的主要特性簡要如下：快速卡口耦合 | 插頭最多可達105個觸點 | 橫截面積從0.5到50平方毫米 | 抗燃料、潤滑脂和絕緣油等的耐性 | 高機械承載能力。
Information for GB210
These receptacles correspond to the standards MIL-DTL-5015 and VG95234. They can be used for both indoor and outdoor applications.
Depending on the backshell used watertightness of up to IP69K can be achieved for the connection. The receptacles have been tested for outdoor use according to IEC EN 60529 IP65 / IP67 / IP68 (5bar) and according to DIN 40050 and IP69K.
For outdoor applications a back shell with sealed cable clamp or with an adapter for heat shrinkable shapes is required.
The main properties of these railway-fit receptacles are, in brief: Bayonet coupling | Inserts up to 105 contacts | Cross sections from 0.5 to 50 mm2 | Resistant against fuels, greas- and insulating oils etc. | High mechanical loading capacity
常用GIMOTA連接器插頭型號：
GIMOTA GB210-24-A28SN-EAC
GIMOTA GB210-24-A28PN-EAC
GIMOTA GB210-24-A25SN-EAC
GIMOTA GB210-24-A25PN-EAC
GIMOTA GB210-24-9SN-EAC
GIMOTA GB210-24-9PN-EAC
GIMOTA GB210-24-5SN-EAC
GIMOTA GB210-24-5PN-EAC
GIMOTA GB210-24-2SN-EAC
GIMOTA GB210-24-2PN-EAC
GIMOTA GB210-24-28SN-EAC
GIMOTA GB210-24-28PN-EAC
GIMOTA GB210-24-27SN-EAC
GIMOTA GB210-24-27PN-EAC
GIMOTA GB210-24-22SN-EAC
GIMOTA GB210-24-22PN-EAC
GIMOTA GB210-24-20SN-EAC
GIMOTA GB210-24-20PN-EAC
GIMOTA GB210-24-19SN-EAC
GIMOTA GB210-24-19PN-EAC
GIMOTA GB210-24-12SN-EAC
GIMOTA GB210-24-12PN-EAC
GIMOTA GB210-24-11SN-EAC
GIMOTA GB210-24-11PN-EAC
GIMOTA GB210-24-10SN-EAC
GIMOTA GB210-24-10PN-EAC
GIMOTA GB210-24-07SN-EAC
GIMOTA GB210-24-07PN-EAC
