AMETEK NCC繼電器ASY-INPUT-BUFR規格介紹
SPECIFICATIONS | |
INPUT | AC: 10.6 to 265 VAC 50/60 Hz, 5 mA max. |
Input-Output Delay: | 50 ms max. |
OUTPUT | |
Effective contact closure for NCC timers: | Closure: VAC = 9 to 265, 50/60 Hz (6 mA max.) |
Voltage drop across output: | 2.2 VAC/VDC max. at I=6 ma |
Output leakage: | At Vin= 0 VDC and Vout = 265 VDC, leakage is 25 uA DC max. |
PROTECTION | |
Transient Voltage: | 30 joule metal oxide varistor |
Dielectric breakdown: | 3000 Vrms terminal to mounting; 1500 Vrms input to output |
Insulation resistance: | 100 megohms min. between terminals and case |
MECHANICAL | |
Termination: | .25" x .032" male fast-on terminals |
Mounting: | Surface mount with one #8 screw |
ENVIRONMENTAL | |
Storage temperature: | -40°C to 85°C |
Operating temperature: | -40°C to 65°C |
Humidity: | 95% relative max. |
AMETEK NCC繼電器產品介紹
NCC延時繼電器，通用電壓輸入緩沖器，時間范圍0.25到5秒，輸入電壓12到240 VAC/DC。
描述：
工作邏輯：在施加輸入電壓時，輸出在50毫秒內成為有效的接觸閉合。移除輸入電壓時，輸出在50毫秒內成為有效的開路。
特點：
通用控制電壓范圍：12至240 VAC/DC
控制所有需要啟動開關輸入的NCC定時器
無需隔離的啟動開關觸點
輕松接口到可編程邏輯控制器
完全固態，無可磨損的移動部件
電路完全封裝
低成本
尺寸緊湊
優越的瞬態保護
阻燃和耐溶劑聚酯熱塑性外殼

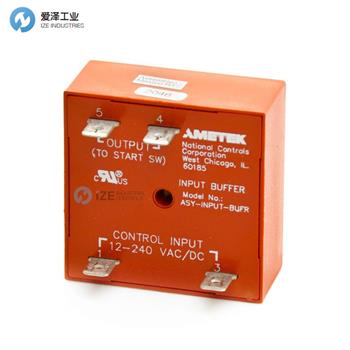

NCC Time Delay Relay, Universal Voltage Input Buffer, Time Range .25 to 5 sec, Input Voltage 12 to 240 VAC/DC
Description
Operating Logic: Upon application of input voltage, the output becomes an effective contact closure (within 50 ms). Upon removal of input voltage, the output becomes an effective open circuit (within 50 ms).
FEATURES
Universal control voltage range: 12 to 240 VAC/DC
Controls all NCC timers requiring start switch input
No need for isolated start switches contacts
Easy interface to programmable logic controllers
Completely solid state, no moving parts to wear out
Circuitry completely encapsulated
Low cost
Compact size
Superior transient protection
Flame-retardant and solvent-resistant polyester thermoplastic housing
