Contacts:

1 NO

Rated impulse withstand voltage Uimp:

4 kV, according to EN/IEC 60947-5-1

Rated insulation voltage Ui:

500 V

Switching rating:

500 V AC @ 10 A

Electrical lifetime:

50 000 cycles of operation

Pollution degree:

3

Standards:

The switches comply with the “Standards for low-voltage switching devices” EN IEC 60947-5-1

Thermal current Ith:

10 A Max. permissible current for continuous operation and ambient temperatures not exceeding the specified max. values.

Mechanical Characteristics

Terminal:

Screw terminal

Contact material:

Gold

Switching system:

Snap-action switching element

Switching system:

The double-break, snap-action switching element is equipped with one or two independent contact systems, acting as normally open or normally closed contact. The snap-action switching element is fitted with self-cleaning contacts.

Operating force:

1 Normally closed approx. 1.9 N, 1 Normally open approx. 2 N

Tightening torque:

Screw terminal 0.5 Nm

Wire cross section:

Max. wire cross-section 2 mm x 2.5 mm2
Skinning wire 10 mm
Max. wire cross-section of stranded cable 2 x 1.5 mm2
use stranded wires only with wire end ferrules of 10 mm length
Only one polarity is allowed on each side when wiring.

Weight:

0.021 kg

Ambient Condition

IP Protection:

IP00

Operating temperature:

– 40 °C … + 55 °C

Storage temperature:

– 40 °C … + 85 °C

Shock resistance:

300 m/s2, pulse width 11 ms, 3-axis, (single impacts, semi-sinusoidal as per DIN EN 60068-2-27)

Vibration resistance:

100 m/s2 at 10 Hz … 500 Hz, amplitude 0.75 mm, (sinusoidal according to DIN EN 60068-2-6)

Climate resistance:

Relative humidity, max. 95%, non-condensing

Certificate

Approbations:

CB (IEC 60947-5-1), cULus, DNV, EAC, NFF, VDE

Conformities:

CE, CCC, UKCA

REACH:

REACH compliant

RoHS:

RoHS compliant

Other

Short Description:

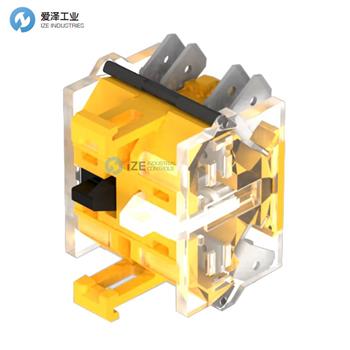

Switching element - Not recommended for new design, Snap-action switching element, 500 V AC @ 10 A, Gold, 1 NO, Screw terminal

Hints:

When using the switching element, the application guidelines must be observed.
For the third switching element the terminal marking insert is to be ordered separately
Operating temperature: Other temperatures on request
