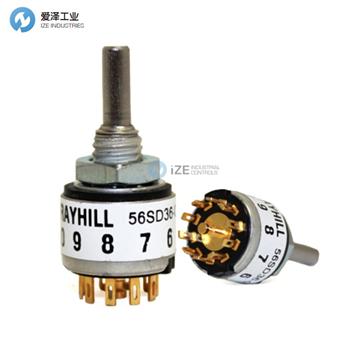

GRAYHILL旋轉開關56系列技術參數
Specification | |
TYPE | DESCRIPTION |
Categories | Switches |
Manufacturer | Grayhill Inc. |
Series | 56 |
Part Status | Active |
Number of Positions | 10 |
Index Stops | Fixed |
Number of Decks | 1 |
Number of Poles per Deck | 1 |
Circuit per Deck | SP10T |
Contact Timing | Non-Shorting (BBM) |
Current Rating (Amps) | 200mA (AC/DC) |
Voltage Rating - AC | 115V |
Voltage Rating - DC | 30V |
Actuator Type | Flatted (3.17mm Dia) |
Actuator Length | 9.53mm |
Angle of Throw | 36° |
Contact Material | Brass |
Contact Finish | Silver |
Mounting Type | Panel Mount |
Termination Style | Solder Lug |
Features | - |
Depth Behind Panel | 12.19mm |
Panel Cutout Dimensions | - |
Operating Force | 2.520 ~ 6.481gfm |
GRAYHILL旋轉開關56系列產品簡介
在面板后面需要最小距離
?可調止動類型可立即提供原型
?工業質量，經濟價格
?符合RoHS
Requires Minimum Distance Behind the Panel
?Adjustable Stop Types Provide Prototypes Immediately
?Industrial Quality, Economically Priced
?RoHS Compliant
GRAYHILL旋轉開關56系列其他常見型號：
GRAYHILL 56A36-01B10S
GRAYHILL 56A36-01B10N
GRAYHILL 56A36-01A10S
GRAYHILL 56A36-01A10N
GRAYHILL 56A36-01-2-05S
GRAYHILL 56A36-01-2-05N
GRAYHILL 56A36-01-2-04S
GRAYHILL 56A36-01-2-04N
GRAYHILL 56A36-01-2-03S
GRAYHILL 56A36-01-2-03N
GRAYHILL 56A36-01-2-02S
GRAYHILL 56A36-01-2-02N
GRAYHILL Rotary Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRAYHILL旋轉開關56A36S-01-1-10N-F的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRAYHILL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
GRAYHILL旋轉開關56A36S-01-1-10N-F產品參數
