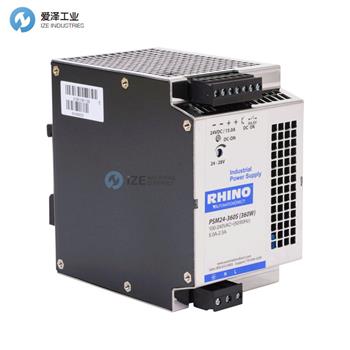

RHINO開關電源PSM24-360S產品參數
Brand | RHINO SELECT |
Item | Power supply |
Series | PSM |
Power Supply Type | Switching |
Efficiency | 85% @115 VAC, 87% @230 VAC |
Output Configuration | Single output |
Output | 24 VDC @ 15A/360W (adjustable) |
Output Voltage Range | 24-28 VDC |
Input voltage range | 85-132 VAC/187-264 VAC |
Number of Input Phases | 1 |
Protection Type(s) | overvoltage |
Remote On/Off | Yes |
Voltage Monitoring | Yes |
Enclosure Type | Enclosed |
Housing Material | Metal |
IP Rating | IP20 |
Mounting | 35mm DIN rail |
Connector Type | Removable screw terminal |
NEC Class 2 | No |
Integrated UPS Battery Control | No |
Operating Temperature | -25 to 70 deg C |
RHINO開關電源PSM系列產品介紹
RHINO SELECT PSM 系列開關電源，24 VDC @ 15A/360W（可調），120/240 VAC 標稱輸入，1相，封閉式，金屬外殼，35mm DIN 導軌安裝，可拆卸螺絲端子。
RHINO SELECT PSM series switching power supply, 24 VDC @ 15A/360W (adjustable), 120/240 VAC nominal input, 1-phase, enclosed, metal housing, 35mm DIN rail mount, removable screw terminal.
RHINO開關電源PSM系列其他常見型號：
RHINO PSM12-078S
RHINO PSM24-090S
RHINO PSM24-090S-N
RHINO PSM12-156S
RHINO PSM24-180S
RHINO PSM24-360S
RHINO PSM24-600S
RHINO DIN rail Power Supplies NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RHINO開關電源PSM24-360S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RHINO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
