R-STAHL開關按鈕8208/24-15-0001參數描述
GENERAL | |
WebCode | 8208A |
Title Product Variant Technical Data | 8208/24-15-0001 Snap sw. NO/NC 10/1kO |
Product Type | 8208/24-15-0001 |

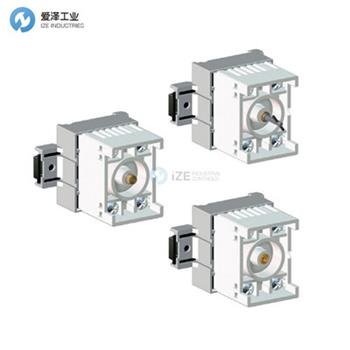

Product Description | Contact element with resistors |
Highlights | Installation of various components such as: Snap action switch, Potentiometer, Relay, Time relay, Diodes, Fuses, Resistors |
Functional Description | Components of various functions such as diodes, resistors, fuses and relays are integrated in the Ex d enclosure 8208. The shown functions are standardised, other customer orders are available on request. |
EXPLOSION PROTECTION | |
Application range (zones) | 1, 2, 21, 22 |
IECEX gas certificate | IECEx PTB 06.0032 U |
ATEX gas certificate | PTB 01 ATEX 1066 U |
EAC gas certificate | GOS 11-1-265-2013 |
Inmetro gas certificate | ULBR140223U |
Gas explosion protection IECEx | Ex db eb IIC T6 |
Gas explosion protection ATEX | II 2 G Ex db eb IIC T6 |
Certificates | ATEX (PTB), Brazil (ULB), IECEx (PTB), India (PESO), SIL (exida) |
ELECTRICAL DATA | |
Rated operational current | 0.020 A |
Rated oper. current for DC | 0.020 - 0.020 A |
No. of poles | 2 |
MECHANICAL DATA | |
Terminal degree of protection (IP) | IP20 |
Enclosure material | Polyamide |
Contact material | gold-plated |
Silicone-free | Yes |
Connection cross-section solid max. | 2.50 mm2 |
Connection cross-section finely stranded max. | 2.50 mm2 |
Connection cross-section | 2.5 mm2 |
Connection cross-section min. | 0.75 mm2 |
Number of NCs | 1 |
Number of NOs | 1 |
Packaging unit | 1 |
Weight | 0.100 kg |
MOUNTING / INSTALLATION | |
Connection type | Screw terminal |
R-STAHL開關按鈕8208/24-15-0001規格描述及選型
R-STAHL開關按鈕8208/24-15-0001
愛澤工業(IZE INDUSTRIES)特價經銷、常用R-STAHL開關按鈕型號：
R-STAHL 8208/24-15-0001
R-STAHL 8208/24-15-0011
R-STAHL 8208/24-15-0021
R-STAHL 8208/24-15-0051
R-STAHL 8208/24-15-0002
R-STAHL 8208/24-15-0012
R-STAHL 8208/24-15-0052
R-STAHL 8208/24-15-0003
R-STAHL 8208/24-15-0053
