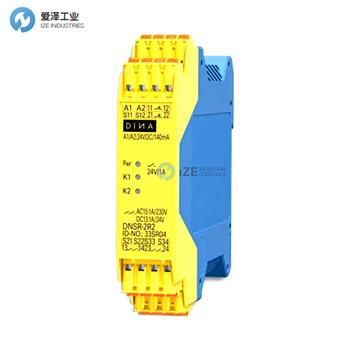

DINA繼電器DNSR-2R2系列技術參數
General information | |
Degree of contamination | 2 |
Overvoltage category | III |
Current consumption at 24V | 40mA in rest position 70mA in active position |
Protection (Casing and Terminals) | IP20 |
Protection (Installation Site) | min. IP 54 |
Power consumption at A1/A2 | 1,6W |
Casing Material | Polyamid PA non-reinforced |
Operating Voltage Ub | 24V DC (±10%) |
Rated surge voltage/ insulation | 4 kV |
Rated insulation voltage | 13/14, 47/48 - 250V AC 24, 34 - 30V AC |
Terminals | Screw terminals |
Conductor cross-section | 0,25 - 1,5 mm^2 |
Conductor cross-section AWG | AWG 24…16 |
Conductor type | Flexible with ferrule |
Wire stripping length | 8mm |
Tightening torque min/max | 0,5Nm/0,6Nm |
DINA繼電器DNSR-2R2系列介紹
緊急停止繼電器可根據應用進行單獨配置，并可提供瞬時、斷開延遲或接通延遲觸點輸出。
根據型號的不同，時間延遲也可以直接在設備上設置。以獲得更大的靈活性。
無延遲觸點輸出
斷開延遲觸點輸出
拾取延遲觸點輸出
裝置上的延時可調
The emergency stop relay is configured individually for your application and can be supplied with instantaneous, off-delayed or on-delayed contact outputs.
Depending on the variant, the time delay can also be set directly on the device. For even more flexibility.
Non-Delayed contact outputs
Off-delay contact outputs
Pick-up delayed contact outputs
Time delay adjustable on the unit
DINA繼電器DNSR-2R2系列其他常用型號：
DINA DNSR-2R2 33SR15
DINA DNSR-2R2 33SR16
DINA DNSR-2R2 33SR17
DINA DNSR-2R2 33SR18
DINA DNSR-2R2 33SR20
DINA RELAY NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DINA繼電器DNSR-2R2 33SR20的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DINA products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
DINA繼電器DNSR-2R2系列DNSR-2R2 33SR20技術參數及介紹
