ARCOTRONICS電容C87.8AF2產品參數
Specification | |
Type of Service | Continuous |
Operating Class | |
C87/8 | Class B 10,000 hours at 470 VAC, Class A 30,000 hours at 420 VAC |
C87/0 | Class B 10,000 hours at 420 VAC, Class C 3,000 hours at 470 VAC |
Temperature Range | ?25 to +85°C valid for all C87 Series |
Rated Voltage | 470 VAC |
Rated Frequency | 50 – 60 Hz |
Voltage Rise/Fall Time (Maximum) | 0 = 15 V/μs |
8 = 20 V/μs | |
Maximum Permissible Voltage | 1.10 x rated voltage |
Maximum Permissible Current | 1.30 x rated current |
Dissipation Factor (DF) | 20 x 10?4 at +20°C, 50 Hz |
Safety Class | S2 |
Maximum Altitude | 2,000 m |
Capacitance Tolerance | ±5% |
Mounting | Any position |
Case | Aluminium |
Disk | Thermoplastic Polymer V0 (UL 94) Plastic deck with: |
Filling Resin | Polyurethane |
Dielectric | Polypropylene |
Plates | Self-healing metal layer |
Test Voltage Terminal to Terminal (VTT) | 2 Vn for 2 seconds |
Test Voltage Terminal to Can (VTC) | 2,000 V for 2 seconds |
Total Harmonic Distortion | Up to 10% |
Fire Load | 40 MJ/kg |
Air Distance Between Live Parts | ≥ 5 mm |
Air Distance Between Live Parts and Case | ≥ 6 mm |
Vibration Test | IEC 68–2–6 |
Maximum Tightening Torque | 5 Nm (M8), 10 Nm (M12) |
ARCOTRONICS電容C87.8AF2產品介紹

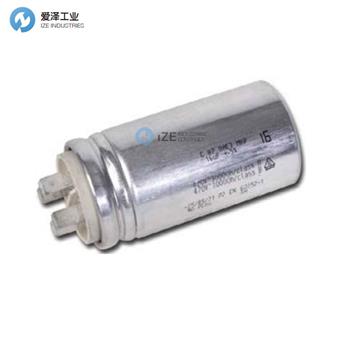

C87電容器是一種聚丙烯金屬化薄膜電容器，采用圓柱形，鋁罐式設計，填充樹脂。它使用faston、塑料甲板或電纜終端，以及超壓安全裝置。
The C87 capacitor is a polypropylene metallized film capacitor with a cylindrical, aluminium can-type design filled with resin. It uses faston, plastic deck or cable terminals, and an overpressure safety device.
選型參考
ARCOTRONICS電容C87系列其他常用型號：
ARCOTRONICS C878AF24100AA5J
ARCOTRONICS C878AF24150AA4J
ARCOTRONICS C878AF24200AA4J
ARCOTRONICS C878AF24250AA4J
ARCOTRONICS C878AF24300AA4J
ARCOTRONICS C878AF24400AA4J
ARCOTRONICS C878AF24500AA4J
ARCOTRONICS C878AF24600AA0J
ARCOTRONICS C878AF24630AA2J
ARCOTRONICS C878AF24700AA0J
ARCOTRONICS C878AF24750AA0J
ARCOTRONICS capacitor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ARCOTRONICS電容C87.8AF2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ARCOTRONICS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
