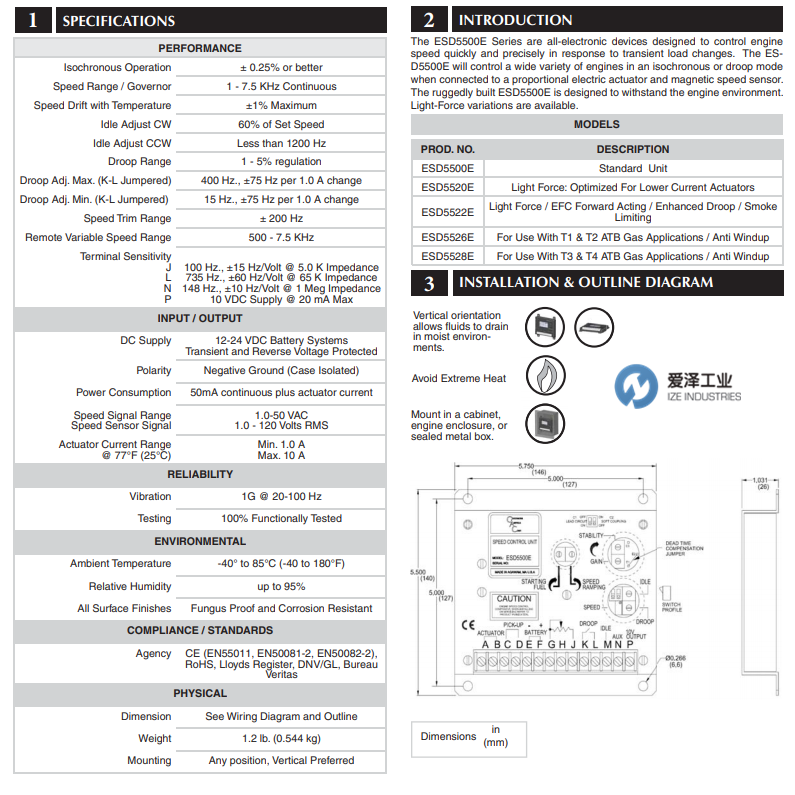

GAC調速板ESD5500E技術參數
PERFORMANCE | |
Isochronous Operation | ±0.25 % or better |
Speed Range /Governor | 1 - 7.5K Hz Continuous |
Speed Drift with Temperature | ±1% Maximum |
Idle Adjust CW | 60% of Set Speed |
Idle Adjust CCW | Less than 1200 Hz |
Droop Range | 1 - 5% Regulation* |
Droop Adj.Max.(K-L Jumpered) | 400 Hz., ±75 Hz per 1.0 A change |
Droop Adj. Min. (K-L Jumpered) | 15 Hz., ±75 Hz per 1.0 A change |
Speed Trim Range | ±200 Hz |
Remote Variable Speed Range | 500 - 7.5 kHz |
Terminal Sensitivity J |
100 Hz., ±15 Hz/Volt @ 5.0 K Impedance |
INPUT / OUTPUT | |
DC Supply | 12-24 VDC Battery Systems |
Polarity | Negative Ground (Case Isolated) |
Power Consumption | 50mA continuous plus actuator current |
Speed Signal Range | 1.0-50 VAC |
Actuator Current Range | Min. 1.0 A |
RELIABILITY | |
Vibration | -40° to 85°C (-40 to 180°F) |
Relative Humidity | up to 95% |
All Surface Finishes | Fungus Proof and Corrosion Resistant |
COMPLIANCE / STANDARDS | |
Agency | CE (EN55011, EN50081-2, EN50082-2),RoHS, Lloyds Register, DNV/GL, Bureau Veritas |
PHYSICAL | |
Dimension | See Wiring Diagram and Outline |
Weight | 1.2 lb. (0.544 kg) |
Mounting | Any position, Vertical Preferred |
GAC調速板ESD5500E產品介紹
GAC調速板ESD5500E產品介紹
ESD5500E系列是全電子設備，旨在響應瞬態負載變化而快速而精確地控制發動機轉速。當與比例電動執行器和磁速度傳感器連接時，ESD5500E將以同步或下垂模式控制各種發動機。堅固耐用的ESD5500E專為承受發動機環境而設計?？梢蕴峁㎜ight-Force變體。
The ESD5500E Series are all-electronic devices designed to control engine speed quickly and precisely in response to transient load changes. The ESD5500E will control a wide variety of engines in an isochronous or droop mode when connected to a proportional electric actuator and magnetic speed sensor. The ruggedly built ESD5500E is designed to withstand the engine environment. Light-Force variations are available.
GAC調速板ESD5500E系列其他型號：
GAC ESD5500E
GAC ESD5520E
GAC ESD5522E
GAC ESD5526E
GAC ESD5528E
