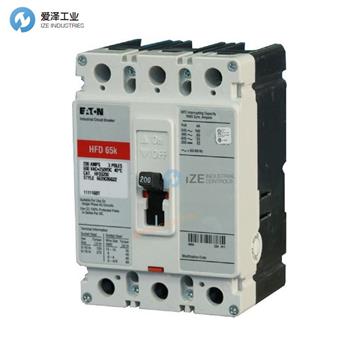

CUTLER-HAMMER斷路器HFD3150LU16產品參數
Specifications | |
HFD3150LU16 UPC | 786685246178 |
Dimensions | |
Height | 4.13 IN |
Length | 3.38 IN |
Width | 4.13 IN |
Weight | 4.55 LB |
Warranties | |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. | |
Amperage Rating | 150A |
Interrupt Rating | 100 kAIC at 240 Vac, 65 kAIC at 480 Vac |
Number Of Poles | Three-pole |
Voltage Rating | 600 Vac, 250 Vdc |
Trip Type | Fixed thermal, fixed magnetic |
Circuit Breaker Type | HFD |
Circuit Breaker Frame Type | Complete breaker |
Frame | F-frame |
Frequency Rating | 50/60 Hz |
Series | Series C |
Terminals | Line and load |
Undervoltage Release | 48-60 Vac same side left terminal |
