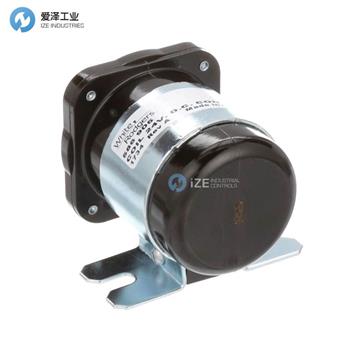

WHITE RODGERS接觸器586-905產品參數
Specifications | |
Product Attribute | Attribute Value |
Contact Current Rating | 200 A |
Contact Material | Silver Alloy |
Control Voltage | 24 VDC |
Depth | 2.9" (73.7mm) |
Dimensions | 3.69 x 3.3 x 2.9 in |
Length | 3.69" (93.726mm) |
Maximum Operating Temperature | 150℉ |
Minimum Operating Temperature | -40℉ |
Mounting Type | Panel Mounted |
Number of Poles | 1 |
Primary Type | Contactor |
Series | 586 Series |
Special Features | Isolated Coil |
Temperature Operating Range | -40 to 150℉ |
Terminal Type | Stud |
Type | Solenoid Contactor |
UPC Code | 78671042774 |
Voltage Rating | 24 VDC |
Width | 3.3" (83.8mm) |

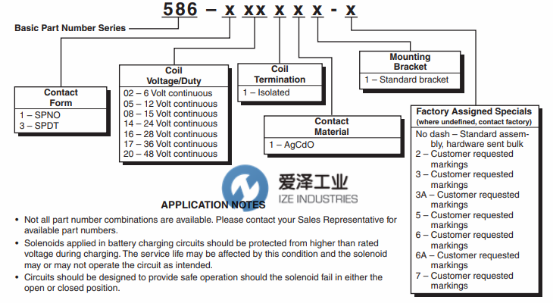

WHITE RODGERS接觸器586系列選型參考
WHITE RODGERS接觸器586系列其他常見型號：
WHITE RODGERS 586-102111-2
WHITE RODGERS 586-105111-3
WHITE RODGERS 586-108111-3A
WHITE RODGERS 586-114111-5
WHITE RODGERS 586-316111-6
WHITE RODGERS 586-317111-6A
WHITE RODGERS 586-320111-7
WHITE RODGERS 586-905
WHITE RODGERS sealed solenoid NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于WHITE RODGERS接觸器586-905的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for WHITE RODGERS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
