ZIVAN電池充電器NG9系列技術參數
THREE-PHASE BATTERY CHARGER Mod. NG5 / 7 / 9 | |
Input voltage: | 400 VAC ± 15% Three Phase |
Input frequency: | 50 – 60 Hz |
Efficiency: | > 87 % |
Minimum power absorbed: | < 10 W |
Current absorbed by the battery: | < 0,5 mA |
Operating temperature: | from – 20 to + 50 °C |
Output short-circuit protection (fuse) | |
Inverse polarity protection (fuse) | |
Charging Curve: | programmable |
Visualization V/I with digital display | |
Accuracy on output voltage: | ± 0,5 % |
Thermal compensation of battery voltage (optional with thermal sensor) | |
Acoustic alarm | |
Auxiliary contacts of main presence and end of charge (Standard Charger) or of air pump control and end of charge (Charger with air pump) | |
Cooling: | forced |
Case: | Metal base, cover in self-extinguishable ABS |
Size: | 545 x 265 x 115 mm |
Weight: | 9 kg |
Enclosure class: | IP20 |
In conformity with the requirements of the Low Voltage Directive and of the Directive EMC | |
ZIVAN電池充電器NG9系列介紹
三相充電器NG5 / 7/9是創新的設備，具有非凡的多功能性，可靠性和效率?？梢园惭b不同的軟件，以更改充電功能并使它們適應各種電池。這些充電器的高功率和效率可確保用戶節省大量能源，并帶來隨后的經濟利益。由于這一優勢，高頻產品的投資得以迅速攤銷。

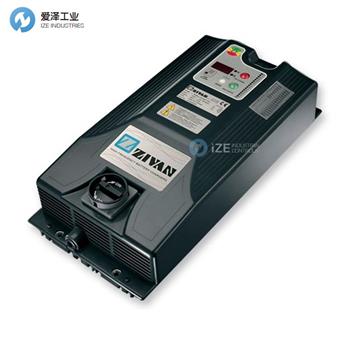

The Three-phase Chargers NG5/7/9 are innovative devices with extraordinary versatility, reliability and efficiency. Different software may be installed in order to change the charging features and to adapt them to every kind of battery. The high power and efficiency of these chargers assures the user of considerable energy savings with subsequent economic benefit. Thanks to this advantage, the investment in High Frequency products is quickly amortized.
ZIVAN電池充電器其他常用型號：
ZIVAN G91TCB-D7040Q
ZIVAN F2BL3K.02000X
ZIVAN battery charger NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ZIVAN電池充電器G91TCB-D7040Q的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for ZIVAN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
ZIVAN電池充電器G91TCB-D7040Q技術參數
