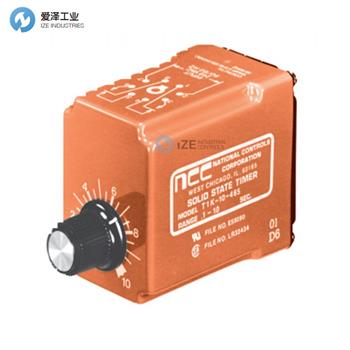

NCC繼電器T1系列技術參數
SPECIFICATIONS | |
TIME DELAY | |
Adjustment: | Knob or external resistor, factory fixed on special order (min. order required) |
Range: | 50 ms to 1 hour in 8 ranges |
Repeatability: | ±1% at constant temperature |
Accuracy: | Maximum time -0%, +10%; |
Reset Time: | 50 ms max. (25 ms typical) |
INPUT | |
Operating Voltage: | 24, 120, 240 VAC; 12, 24 VDC ±10% (DC models have reverse polarity protection. Unfiltered input voltage to them must be full-wave rectified) |
Power Consumption: | 3 VA max. |
Frequency: | 50/60 Hz |
OUTPUT | |
Type: | Relay contacts, DPDT (2 form C) |
Rating: | 10 A max. resistive at 240 VAC; 100 mA at 5 VDC min. load current |
Life: | Mechanical: 10,000,000 operations |
PROTECTION | |
Transient Voltage: | 12, 24 V timers are protected by an 8.8 joule metal oxide varistor; 120, 240 V timers are protected by a 30 joule metal oxide varistor |
Dielectric Breakdown: | 1500 VAC, RMS min. at 60 Hz between input and outputs and between outputs |
MECHANICAL | |
Termination: | 8-pin or 11-pin plug |
Mounting: | Socket mount, 8-pin part number MSO-0008P-012; Socket mount, 11-pin part number MSO-0011P-012 |
ENVIRONMENTAL | |
Storage Temperature: | -23°C to 70°C |
Operating Temperature: | -23°C to 55°C |
NCC繼電器T1系列介紹
100% 功能測試
數字定時電路
±1% 重復性
時間校準表盤
優質的瞬態保護
玻璃纖維增強電路板
重型底盤支持的內部組件
加固型底座定位銷
阻燃聚碳酸酯外殼
100% functionally tested
Digital timing circuit
±1% repeatability
Time calibrated dial
Superior transient protection
Fiberglass reinforced circuit board
Internal components supported by heavy-duty chassis
Reinforced base locator pin
Flame-retardant polycarbonate housing
NCC繼電器T1系列其他常用型號：
NCC T1K-00001-461
NCC T1K-00010-461
NCC T1K-00030-461
NCC T1K-00060-461
NCC T1K-00180-461
NCC T1K-00300-461
NCC T1K-00600-461
NCC T1K-03600-461
NCC T1K-00010-466
NCC T1K-00030-466
NCC T1K-00060-466
NCC T1K-00010-462
NCC T1K-00060-462
NCC T1K-00010-467
NCC T1K-00060-467
NCC T1F-00010-461
NCC T1F-00060-461
NCC T1K-00010-465
NCC T1K-00060-465
NCC Relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NCC繼電器T1K-00030-461的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NCC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
NCC繼電器TI系列T1K-00030-461介紹及技術參數
