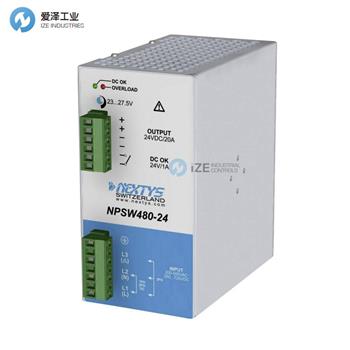

NEXTYS電源NPSW480-24技術規格
Model type | NPSW480-24 |
Rated voltage | 24Vdc |
Adj. output voltage range | 23…28Vdc |
Continuous current | 20A |
Overload limit | 28A |
Short circuit peak current | 50A |
Load regulation | ≤ 1% |
Ripple & Noise | ≤ 50mVpp |
Hold up time | ≥ 50ms |
Protections | Overload, short circuit: Hiccup mode |
Output overvoltage protection | ≥ 33Vdc |
Status Signals | DC OK - green LED |
Parallel connection | Possible for redundancy (with external ORing module) |
Input DC rated voltage | 250...725Vdc |
Power factor correction | Active / > 0.9 |
Inrush peak current2 / I2t | ≤ 55A / 2.16A2s |
Touch (leakage) current | ≤ 0.6mA |
Internal protection fuse | None, external fuse must be provided |
Efficiency | > 92% |
Dissipated power | < 42W |
Operating temperature | - 40°C…+ 70°C UL certified up to 45°C |
Derating | - 10W/°C over 45°C |
Storage temperature | - 40°C...+ 80°C |
Humidity | 5…95% r.H. non condensing |
Life time expectation | 65’496h (7.4 years) at 25°C ambient full load |
Input / output isolation | 4.2kVdc |
Input / ground isolation | 2.2kVdc |
Output / ground isolation | 0.75kVdc |
Connection terminals | 2.5mm2, screw type pluggable (24...12AWG) |
Case material | Aluminum |
Weight | 1.0kg |
Size (W x H x D) | 73.0 x 140.0 x 125.0mm |
NEXTYS電源NPSW480系列介紹
高效率和緊湊的尺寸
僅73毫米寬的鋁制外殼
1、2或3相輸入AC 187…550Vac
寬直流輸入范圍250…725Vdc
主動式PFC
過載140%
優質的現場可靠性記錄
可用于廣泛的工業、電信和可再生能源應用
High efficiency and compact size
Only 73mm width aluminum enclosure
1, 2 or 3 phases input AC 187…550Vac
Wide DC input range 250…725Vdc
Active PFC
Overload 140%
Excellent field reliability record
Usable for broad range of industrial, telecom and renewable energy applications
NEXTYS電源NPSW480系列其他常用型號：
NEXTYS NPSW480-24
NEXTYS NPSW480-48
NEXTYS NPSW480-72
