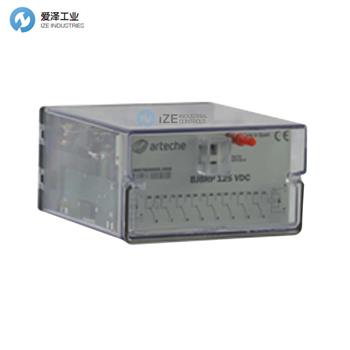

ARTECHE繼電器BJ-8RP技術參數
Model | BJ-8RP |
Construction characteristics | |
Contacts no. | 8 Changeover |
Weight (g) | 600 |
Dimensions (mm) | (A) 90 x (B) 50 x (C) 100,5 (J large Type) |
Coil characteristics | |
Standard voltages | 24, 48, 72, 110, 125, 220 Vdc |
Voltage range | +10% -20% UN |
Average consumptions only in the change-over | 45 W |
Operating time | |
Pick-up time | <10 ms (Vdc) <20 ms (Vac) |
Contacts | |
Contact material | AgNi |
Distance between contacts | 1,8 mm |
Permanent current | 10 A |
Instantaneous current | 80 A during 200 ms / 200 A during 10 ms |
Max. making capacity | 40 A / 0,5 s / 110 Vdc |
Umax opened contact | 250 Vdc / 400 Vac |
Performance data | |
Mechanical endurance | 107 operations |
Operating temperature | -40oC +70oC |
Storage temperature | -40oC +85oC |
Max. operating humidity | 93% / +40oC |
Operating altitude | <2000 m |
ARTECHE繼電器介紹
適用于對操作時間和分?jǐn)嗄芰τ懈哔|(zhì)量要求的跳閘和鎖定應用，并具有手動復位功能。
Intended for tripping and locking applications where high quality requirements in operating time and breaking capacity are needed, with manual reset.
