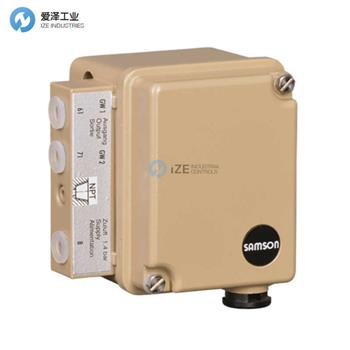

SAMSON限位開關4746-0281型技術參數
Technical data | |
Inductive Limit Switch | Type 4746-0281 |
Control circuit | Three-wire switch Operating voltage 10 to 30 V |
Proximity switch | SB3,5-E2 |
With metal cable gland | –25 to 70 °C |
Switching function | NC contact |
Electrical connections | One M20x1.5 cable gland for 5.5 to 13 mm clamping range |
Degree of protection | IP 65 |
Weight | Approx. 0.7 kg |
Materials | |
Housing and cover | Powder-coated aluminum |
Lever and shaft | 1.4571 |
Cable gland | M20x1.5, black polyamide |
SAMSON限位開關4746系列介紹
電動/氣動限位開關
可選配兩個感應、兩個電動或兩個氣動限位觸點
鋁制外殼
根據 IEC 60534-6 連接到線性執行器，SAMSON 4763 型或 4765 型定位器
開關精度高
安裝的限位觸點不會相互影響
滯后（死區）取決于有效杠桿長度
Electric/pneumatic limit switch
Optionally fitted with two inductive, two electric, or two pneumatic limit contacts
Aluminum housing
Attachment to linear actuators according to IEC 60534-6, to SAMSON Type 4763 or Type 4765 Positioners
High switching accuracy
Mounted limit contacts do not influence each other
Hysteresis (dead band) dependent on effective lever length

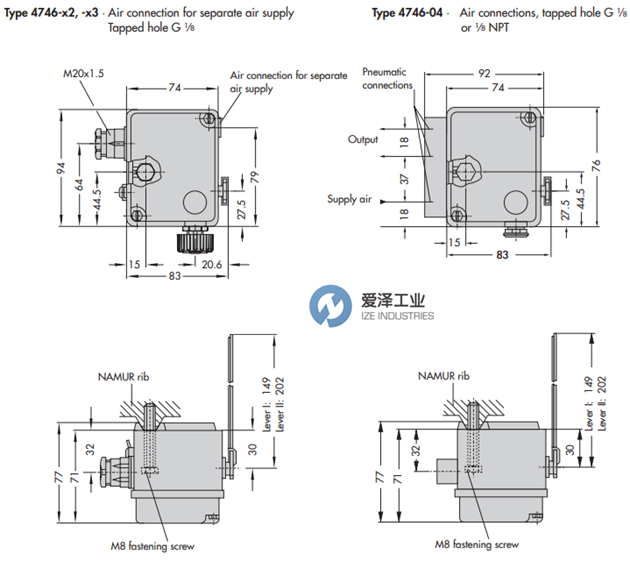

SAMSON限位開關4746系列技術尺寸

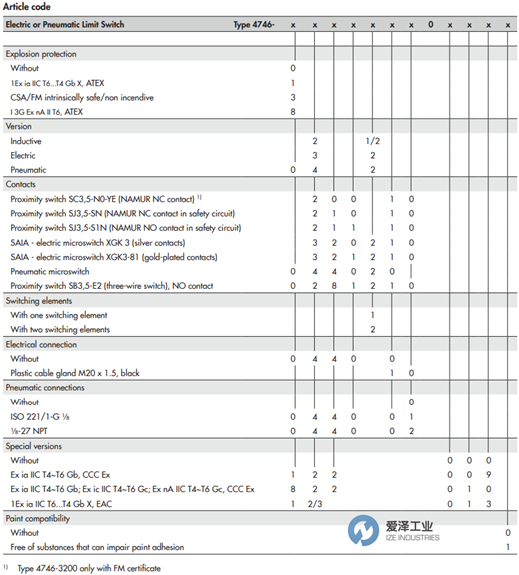

SAMSON限位開關4746系列系列選型
SAMSON限位開關4746系列其他常用型號：
SAMSON 4746-12002X0.07-0103
SAMSON 4746-3202X0.07
SAMSON 4746-03202100000.07
SAMSON 4746-1210210000.07
SAMSON 4746-02812100000.07
SAMSON Limit Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON限位開關4746-02812100000.07的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
SAMSON限位開關4746系列4746-02812100000.07技術參數及選型
