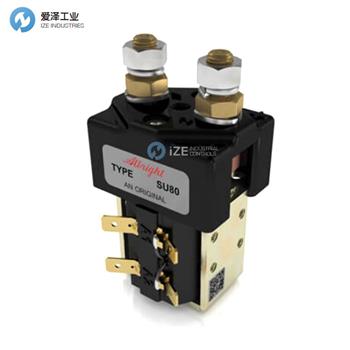

ALBRIGHT接觸器SU80系列介紹
Technical Information | ||
Application | Interrupted | Uninterrupted |
Thermal Current Rating | 150A | 200A |
Intermittent Current Rating: | ||
30% Duty | 275A | 365A |
40% Duty | 235A | 315A |
50% Duty | 210A | 285A |
60% Duty | 195A | 260A |
70% Duty | 180A | 240A |
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: | (In accordance with UL583*) | |
Blowouts | 800A at 80V D.C. | |
No Blowouts | 800A at 48V D.C. | |
Rated Fault Current Breaking Capacity (Icn) Resistive Load: | (In accordance with UL508*) | |
Blowouts | 300A at 96V D.C. | |
No Blowouts | 300A at 60V D.C. | |
Maximum Recommended Contact Voltages | ||
Blowouts | 96V | 96V |
No Blowouts | 48V | 60V |
Typical Voltage Drop per pole across New Contacts at 150A | 40mV | |
Mechanical Durability | > 3,000,000 Cycles | |
Coil Voltage Available (Us) (Rectifer board required for A.C) | 6 - 240V | |
ALBRIGHT接觸器其他常用型號：
ALBRIGHT SU80AB-5158
ALBRIGHT SU80-5002
ALBRIGHT SU80-5000
ALBRIGHT SU80-5006
ALBRIGHT SU80-5004
ALBRIGHT SU80-5016
ALBRIGHT SU80-5018
ALBRIGHT SU80-5274
ALBRIGHT SU80-5161MP
ALBRIGHT SU80-5275
ALBRIGHT SU80-5388MP
ALBRIGHT SU80-5389MP
ALBRIGHT SU80-5165MPL
ALBRIGHT SU80-5164MPL
ALBRIGHT SU80-5175P
ALBRIGHT SU80-5050P
ALBRIGHT SU80-5144P
ALBRIGHT SU80-5217P
ALBRIGHT SU80-5062P
ALBRIGHT SU80-5048P
ALBRIGHT SU80-5315P
ALBRIGHT SU80-5063P
ALBRIGHT SU80-5169P
ALBRIGHT SU80-5046P
ALBRIGHT SU80-5242P
ALBRIGHT switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ALBRIGHT接觸器SU80AB-5158的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ALBRIGHT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
