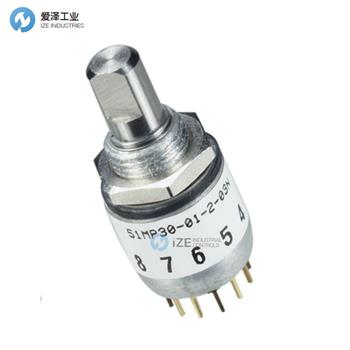

GRAYHILL開關51MP30-01-1-06N技術規格
Product Attributes | |
Series | 50-51 |
Output | Rotary |
Angle of Throw (°) | 30 |
# of Decks | 1 |
# of Poles | 1 |
Positions per Pole | 6 |
Shaft Style | Shaft |
Shaft Diamter (in) | 0.125 |
Contact Type | Non-Shorting |
Termination | PC Mount |
Fixed Stop | Fixed Stop |
Military | Yes |
Shaft and Panel Seal | Yes |
UL Rated | No |
RoHS Compliant | Yes |
Life Cycles | 25,000 |
Rotational Torque | 8-24 ozf in |
Stop Strength | 7.5 lbf in |
Behind Panel (inch) | 0.537 |
Max Electrical Rating | 200 mA |
GRAYHILL開關51系列介紹
SERIES 50 SERIES 51
0.5" Diameter, 200mA,.698" Behind Panel
FEATURES
? Optional Complete Seal for PC Board Assembly and Cleaning
? Small 1/2" Diameter
? Choice of 22.5°, 30°, 36°, 45°, 60° and 90° Angles of Throw
? Up to 4 Poles on 1 Deck
? Up to 16 Positions Per Switch
? PC or Solder Lug Termination
? Positive Shaft Grounding for EMI/RFI Shielding
50 系列 51 系列
0.5" 直徑, 200mA,.698" 后面板
特征
? 用于 PC 板組裝和清潔的可選完整密封件
? 小 1/2" 直徑
? 可選擇 22.5°、30°、36°、45°、60° 和 90° 投擲角
? 1 個甲板上最多 4 個桿
? 每個開關最多 16 個位置
? PC 或焊片端接
? 用于 EMI/RFI 屏蔽的正軸接地
GRAYHILL開關51系列其他常用型號：
GRAYHILL 51MP30-01-1-06N
GRAYHILL 51MP30-01-1-02N
GRAYHILL 51MP30-01-2-05S
GRAYHILL 51MP30-01-2-06N
GRAYHILL 51MP30-01-2-06S
GRAYHILL 51MP30-01-3-03S
GRAYHILL 51MP30-01-3-04N
GRAYHILL 51MP30-01-3-04S
GRAYHILL 51MP30-01-4-02N
GRAYHILL 51MP30-01-4-02S
GRAYHILL 51MP30-01-4-03N
GRAYHILL 51MP30-01-4-03S
GRAYHILL 51MP30-01B12N
GRAYHILL 51MP30-01B12S
GRAYHILL Level Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GRAYHILL開關51MP30-01-1-06N的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GRAYHILL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
