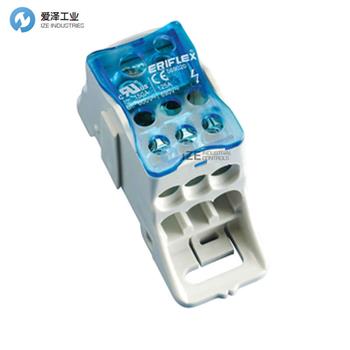

NVENT單極配電塊UDJ-125A技術參數
Article Number: | 569020 |
Finish: | Tinned |
Max Current Rating, IEC: | 125 A |
Max Current Rating, UL/CSA: | 150 A |
Line Side Connection: | Cable |
Load Side Connection: | 7 Cables |
Material: | Copper;Thermoplastic |
Line Side Max Conductor Size, UL: | 1/0 AWG |
Load Side Max Conductor Size, UL: | #4 |
Max Working Voltage, IEC (Ui): | 1,000 VAC/DC |
Max Working Voltage, UL (Vin): | 600 V |
Short Term Withstand Current (Icw) 1s: | 4.2 kA |
Peak Short Circuit Current (Ipk): | 30 kA |
Rated Conditional Short-Circuit Current (Icc): | 15 kA |
Short Circuit Current Rating (SCCR): | 100 kA |
Line Side Number of Connections: | 1 |
Line Side Wire Size: | #8 – 1/0 |
Line Side Compact Stranded Wire Size: | 10 - 35 mm2 |
Load Side Number of Connections: | 7 |
Load Side Compact Stranded Wire Size: | (1) 6 - 16 mm2;(6) 2,5 - 16 mm2 |
Load Side Stranded Wire Size - Ferrule: | (1) 6 - 16 mm2;(4) 2,5 - 16 mm2 |
Load Side Wire Size: | (1) #14 - #2 Stranded or #14 - #10 Solid;(6) #14 - #4 |
Enclosure Rating: | IP 20 |
Width (W): | 1.160" |
Height (H): | 3.040" |
Depth (D): | 1.820" |
Unit Weight: | 0.330 lb |
Certification Details: | UL? 1059 |
Flammability Rating: | UL? 94V-0 |
Complies With: | IEC? 60947-7-1 |
NVENT單極配電塊UDJ-125A產品介紹
? 鍍錫銅或鋁塊允許銅或鋁導體直接連接，或使用套圈
? 螺絲固定蓋是鉸接和可拆卸的
? 設計允許目視檢查導體并確認連接
? 用于構建多極電源塊的模塊化卡扣塊
? 輕松夾在 DIN 導軌上或用螺釘安裝到面板上
? 95% 填充率
? 符合 RoHS 標準
? 符合 EN 45545，獲得第 R23 章的 HL3 分類和第 R22 章的 HL2 分類
? 無鹵素
? Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
? Screw retaining cover is hinged and removable
? Design allows for visual inspection of conductor and confirmation of connection
? Modular snap-together blocks for building multi-pole power blocks
? Easily clips onto DIN rail or mounts to panel with screws
? 95% fill ratio
? RoHS compliant
? Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
? Halogen free
NVENT單極配電塊其他常用型號：
NVENT UDJ-125A
NVENT UDJ-160A
NVENT UD-250A
NVENT UDF-250A
NVENT UD-400A
NVENT UD-400112AL
NVENT UD-400112CU
NVENT UD-400212AL
NVENT UD-400212AL
NVENT UD-400212CU
NVENT UDF-500A
