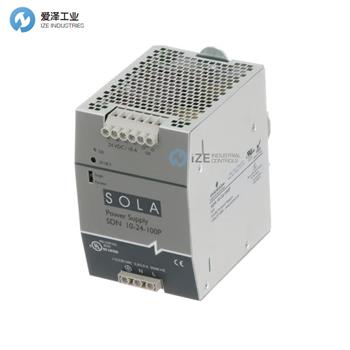

SOLAHD電源SDN10-24-100P規格描述
Description | SDN 10-24-100P |
Input | |
Nominal Voltage | 115/230 Vac, Auto select |
-AC Range | 85-132/176-264 Vac |
-DC Range 1 | 210 - 375 Vdc |
-Frequency | 47 - 63 Hz |
Nominal current 2 | 5 / 2 A typ. |
-Inrush current max. | typ. < 40 A |
Efficiency (Losses ) | > 88% typ. (32.7 W) |
Power Factor Correction | Units Fulfill EN61000-3-2 |
Output | |
Nominal Voltage | 24 Vdc (22.5 - 28.5 Vdc adj.) |
-Tolerance | < ±2% overall (combination Line, load, time and temperature related changes) |
- Ripple 4 | < 50 mVpp |
Overvoltage Protection | < 33 Vdc |
Nominal Current | 10 A (240 W) |
-Current Limit | Fold Forward (Current rises, voltage drops to maintain constant power during overload up to max peak current) |
Holdup Time | > 20 ms @ full load |
Parallel Operation | Single or Parallel use is selectable via Front Panel Switch (SDN 2.5, 4 should not be used in parallel as Class 2 rating would be violated.) |
SOLAHD電源其他常用型號：
SOLD SDN9-12- -100P
SOLD SDN16-12-100P
SOLD SDN2.5-24-100P
SOLD SDN4-24-100LP
SOLD SDN5-24-100P
SOLD SDN10-24-100P
SOLD SDN5-48-100P
SOLAHD power supply NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SOLAHD電源SDN10-24-100P的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SOLAHD products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
