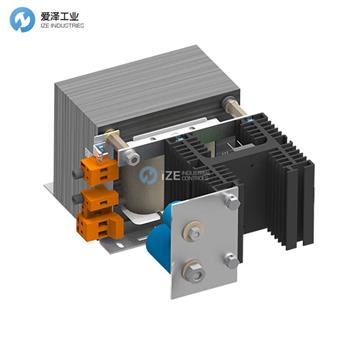

TRAMAG開關電源ENG144S技術參數
1ph power supply unit | ENG 144S |
Type / kind | ENG |
Performance / power [W] | 144 |
Input voltage / input [V] | 230 |
Output voltage / output [VDC] | 24 |
Output current / output [ADC] | 6 |
Frequency / frequency [Hz] | 50/60 |
Duty cycle [%] | 100 |
Installation, cooling type | in convection direction |
Degree of protection / enclosure | IP 00 |
Protection class | 1 |
Iso class / Insulating class | B |
Vector group | Ii0 |
ambient temp. / ambient [°C] | 55 |
Installation height / list height [m] | 1000 |
Weight / weight [kg] | 4.6 |
Wiring on the output side | varistor, C |
Residual ripple (typ.) / ripple [%] | < 5 |
dim. (L x W x H) / dimension [mm] | 106 x 115 x 158 |
Power indicator / signal | LED |
Connections / connectors | Screw terminal |
Si secondary / protection | Si 10 A |
Thermal switch / thermistor [°C] | 130 / normally closed |
Cu content [kg] | 0.8 |
Regulations | EN 61558-2-6 |
TRAMAG開關電源其他常用型號：
TRAMAG ENG144S
