Electrical Configuration

Number of contacts Low Voltage

19

Contact Termination Low voltage

Solder

R (max)

6.1 mOhm

Insert configuration value

2B.319 - 19 Low Voltage

Insulator

L: PEEK (UL 94 / V-0/1.5)

Rated current

5 A

Vtest (contact-contact)

1.4 kV (DC)

Vtest (contact-shell)

1.8 kV (DC)

Max. Conductor

0.34 mm2 (AWG 22)

Max. Stranded Conductor

0.34 mm2 (AWG 22)

Bucket Dia.

0.8 mm (0.031in)

Contact Dia.

0.7 mm (0.028in)

Wire Size/AWG

30 - 22

Gender

Standard

Form & Material

Shell style / Model id

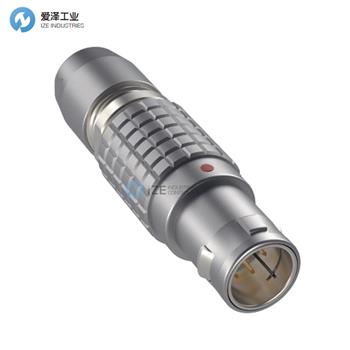

FG - Straight plug, cable collet and nut for fitting a bend relief

Plug

Straight

Housing material

Brass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated [SAE AMS QQ N 290] brass latch sleeve and mid pieces

Locking system

Push-pull

Keying

G: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)

Colour

Grey

Variant

Nut for fitting a bend relief

Weight

29.44 g

Environment

Technical domain

Audio Video, Energy and Industrial, Medical,Semiconductor, Specialties and Other,Test and Measurement, Transportation, Aerospace and UAV

Environmental sealing (IP rating)

IP50

Endurance

5000 mating cycles

Temperature range

-55°C / +250°C (max. temperature valid for short periods of use.)

Climatical Category

55/175/21

Humidity (max)

<=95% [at 60 deg C /140 F]

Shielding (min)

75 dB (10 MHz)

Shielding (min)

40 dB (1 GHz)

Shock Resistance

100 g [ 6 ms]

Vibration

15 g [10 Hz - 2000 Hz]

Salt Spray Corrosion

>1000 hr

Cable fixation

Cable termination protection

For cable bend relief

Fixation type

Cable collet

Jacket cable outside diameter [mm]

7.30 - 8.20 mm
