AMPHENOL連接器ASVG06F14SA5PCBALC產品參數
Specification | |
Mechanical | |
durability | ≥ 500 mating cycles |
Vibration & shock | IEC 61373-1999 (GB/T 21563-2008) |
contact retention force | #16: 70n |
Electrical | |
rated current | #16: 13A max |
rated voltage | Comforming with MS5015, please refer to p.5 and p.6 |
contact resistance | #16: 2.5mΩ max |
insulator resistance | ≥ 5000MΩ |
temperature rise | ≤ 60°C |
enVironMental | |
temperature range | -55°C to 125°C |
humidity | 90% to 95% (40±2°C) |
Sealing | din en 60529,iP67 |
Infmmability | en 45545-2 - r22 |
Salt spray | 48h (nickel plating) 96h (zinc plating) |
Material | |
Shell | Alu.alloy, zinc or nickel or anodized or Si-Ni conductive plating |
lnserts | thermoplastic |
Sealing gasket | Silicon rubber |
contact | Copper alloy, silver or gold plating |

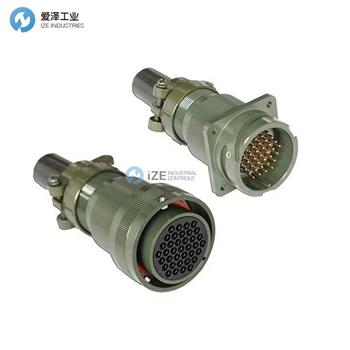

AMPHENOL連接器ASVG06F14SA5PCBALC產品介紹
ASVG系列的設計符合MS5015規范。該連接器是MS5015標準連接器的增強版本，但仍可與MS5015反向卡口連接器完全互連。
?符合法國鐵路標準NFF 61030。
?絕緣子是硬質熱塑性塑料，分類為UL94V0。它也符合DIN EN45445：2013的R22（HL3）。
?陽型插入件上存在界面硅密封，以延長爬電距離并在連接器配對時具有更好的密封性。
?無需工具即可將觸點插入絕緣子。提取工具可用于提取聯系人。該工具被連接器的前表面接合，并且觸點向后釋放。
?通過非常常用的壓接工具，可以壓接觸點。
?連接器與合適的附件，墊圈或密封的后蓋配合使用時，其防護等級為IP67。
?提供MS5015中未描述的各種其他插入件布置。
ASVG系列為RMT以及推進技術，機床，測量和機器人等常見應用提供了高可靠性和高性能。
ASVG series has been designed in accordance with the MS5015 specification. This connector is an enhanced version of the MS5015 standard connector but remains completely intermateable with the MS5015 reverse bayonet connectors.
? In conformity with the French railways standard NFF 61030.
? The insulator is in hard thermoplastic, classified UL94V0. It is also in conformity with R22(HL3) according to DIN EN45445 : 2013.
? An interfacial silicon seal is present on the male inserts to extend the creepage distance and to have better sealing when the connector is mated.
? No tools are needed to insert contacts into the insulator. An extraction tool is available to extract the contacts. The tool is engaged by the front face of the connector and the contacts are rear released.
? Contacts are crimped thanks to very common crimping tools.
? The connector is rated IP67 when mated and used with suitable accessories, a grommet or a sealed backshell.
? Offering a variety of additional insert arrangements not described in the MS5015.
The ASVG series offers high reliability and performance for common applications including RMT as well as propulsion technologies, machine tools, measurement and robotics

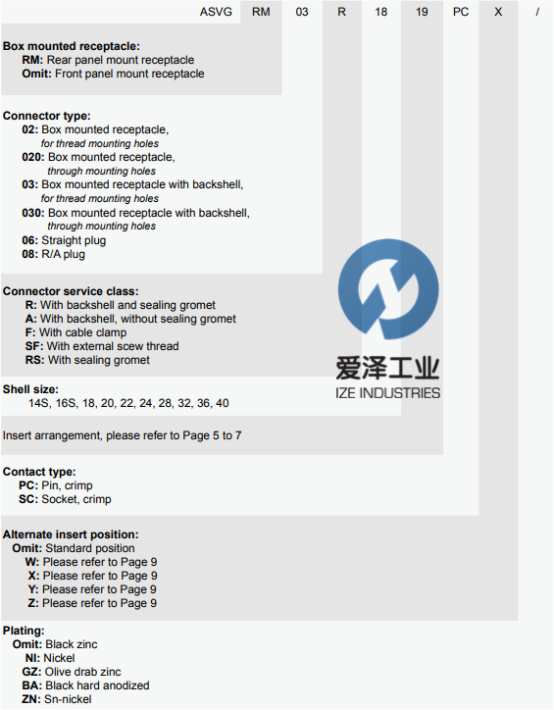

選型參考
AMPHENOL連接器ASVG06F14SA5PCBALC其他型號：
AMPHENOL ASVG02A
AMPHENOL ASVG020A
AMPHENOL ASVG03F
AMPHENOL ASVG030F
AMPHENOL ASVG03RS
AMPHENOL ASVG030RS
AMPHENOL ASVG03SF
AMPHENOL ASVG030SF
AMPHENOL ASVG03A
AMPHENOL ASVG030A
AMPHENOL ASVG03R
AMPHENOL ASVG030R
AMPHENOL ASVG06F
AMPHENOL ASVG06SF
AMPHENOL ASVG06F14SA5PCBALC
AMPHENOL connector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AMPHENOL連接器ASVG06F14SA5PCBALC的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AMPHENOL products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
