Probe type:

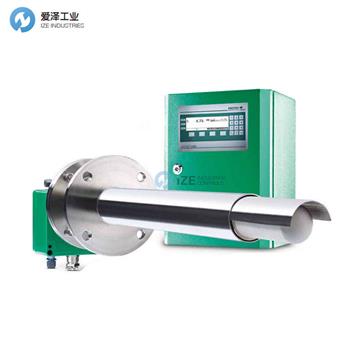

KES-1000

Insertion depth:

400 mm

Filter unit:

sintered metal filter head for high dust applications

IP code terminal box:

plug and socket IP20 (other on request)

Probe material:

1.4571/1.4301

Max. flue gas temperature:

400 °C

Ambient temperature:

-40 °C to +80 °C

Flue gas pressure:

±50 mbar

Flue velocity:

0-50 m/sec

Probe flange:

similar to DN65 PN6

O2-Sensor

Response time:

approx. 0,5 sec.

T-90-time:

approx. 5,0 sec. (horizontal mounted)

Sensor-accuracy:

better 0,2% of measured value

Sensor-resolution:

better 1 ppm O2

Measuring principle:

Zirconium oxide

Sensor temperature:

800 °C

O2-sensor life time:

on average 7-8 years (depending on the application)

Electronic unit in field case

Unit case:

steel sheet wall mounted housing RAL 7035

Protection:

IP 66 (NEMA4)

EMV tested:

EN 61000-6-2:2005

Dimensions:

approx. 400x300x240 mm (HxWxD)

Weight:

approx. 17,8 kg

Line voltage:

230 VAC/50-60 Hz +/- 10%

Ambient temperature:

-20 °C to +55 °C

Measuring ranges 02:

0-2% to 0-21% O2 programmable

Output:

programmable 0/4-20 mA; potential free; 500 ohm max.

Accuracy:

+/-0,2% of reading; max. +/-0,01% O2 less than 200 ms

Response time:

less than 200 ms

Operation:

with soft keys; menu controlled; self explanatory

Display:

LCD display, LED illuminated

Spectrum

actual values parameters, system functionsand system status and system status
