CANNEED厚度計STG-200-D產品描述

應用

在雙縫結構被切割后，縫隙監測器測得的縫隙厚度不準確，因此在切割雙縫結構之前需要測量縫隙厚度。

“CanNeed-STG-200-d雙縫厚度計（數字）”用于測量罐子的縫隙厚度。具有測量角度補償功能，可調節中心測量點。測量過程中罐體可以自動定位到中心，操作簡便。配備 Mitutoyo 0.01mm分辨率的數字指示器。

優勢

設計可靠，測量壓力和測量角度保持不變，即使操作經驗不足的人員也能進行準確測量。自動對準罐體中心，適用于不同類型的罐子。

儀表可通過適配器和電纜連接到計算機或SPC系統，以避免手動記錄和人為誤差。還可以與CanNeed縫隙監測器結合，導入測量數據到電腦。

技術參數

測量范圍：0-6毫米（可選其他范圍）

分辨率：0.01毫米

Applications

After the double seam structure was cut, the seam thickness that measured on the seam monitor is not accurate, therefore, seam thickness need to be measured before the double seam structure was cut.

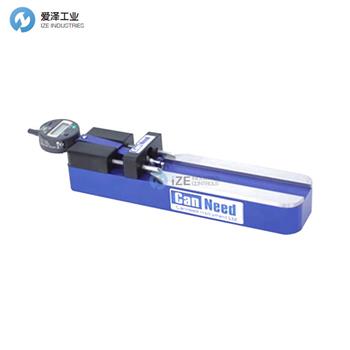

The “CanNeed-STG-200-d Seam thickness gauge (Digital)” is used to measure the Seam thickness of cans. With measure angle compensation. The center measure point can be adjusted. Cans can be auto – positioned in the center easily during measuring. With the Mitutoyo 0.01mm Resolution Digital Indicator.

Advantages

Reliable design, invariablenes measuring pressure and measuring angle which enable the inexperienced operators can also perform the measurement accurately. Auto aligning the center of can body, applicable for different types of cans.

The gauges can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.

Technical Parameter

Measurement range : 0-6mm (optional for other ranges)

Resolution : 0.01mm
