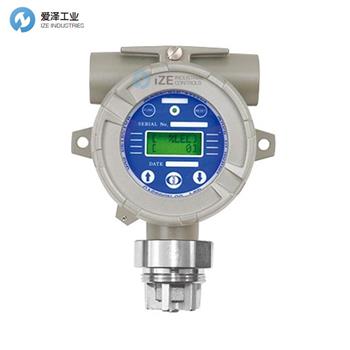

GASTRON氣體檢測儀GTD-2000EX-NMP技術參數
specification | |
Hazardous Area Standards | EN 50014, EN50019, EN50028 |
Code of protection | Ex d IIC T6 (-20 to 60℃) |
IP Rating | IP 66/67 |
Application | Combustible gas detector |
Measuring Range | 0~100 %LEL (0~5% volume of methane) |
Measuring resolution | 1 %LEL |
Over range indication | Continuously display gas concentration up to 110 %LEL. |
Calibration level | User selectable 20 %LEL ~90 %LEL in 1 %LEL increments |
Analogue output during calibration | 3.0mA |
Repeatability, Short term | ±3% LEL over 1 hour |
Repeatability, Long term | ±10% LEL over 3 months |
Accuracy | ±3% LEL/ Full scale |
Response Time | 90% of full scale in less than 20 sec |
Dimension | 136(W) X 166(H) X 110(D) mm |
Weight including Sensor | App. 1.5kg |
Cable inlet | 1/2" or 3/4" PF, NPT (3/4" PF standard) |
Operating temperature range | -20 ~ 60℃ |
Storage temperature range | -20 ~ 60℃ |
Relative humidity range | 5% ~ 99%RH |
Operating pressure range | 90Kpa /110Kpa |
Operating Altitude (max) | 1000 m |
Non operating Altitude (max) | 2000 m |
EMC (electromagnetic compatibility) | Comply with EN50270 |
Supply voltage | 18VDC/31VDC |
Supply voltage ripple & noise max | 1Vpp |
Current consumption (typical /max) | 150mA/250mA@24VDC |
Analog output current range | 0-22.0 mA |
Gas concentration output current range | 4-20 mA |
Analog output current ripple & noise max | 20uApp |
Analog output termination resistance(including total cable resistance) | < 600Ω |
GASTRON氣體檢測儀GTD-2000EX-NMP簡介
GTD-2000Ex型可燃?xì)怏w檢測儀是為防止工廠、儲氣庫、工廠等危險場所發生瓦斯爆炸事故而研制的。
可燃?xì)怏w檢測儀GTD-2000Ex安裝在危險區域時，將定期連續檢測氣體泄漏情況，并用集成液晶顯示器顯示數據，提供4-20mA標準輸出。此外，對于直流4-20毫安標準輸出，輸出部分距離傳感器部分可達到2500米。（使用CVVS或CVVSB 1.5sq以上電纜時）
可燃?xì)怏w探測器GTD-2000Ex應在海拔1000米以下使用。
Combustible gas detector GTD-2000Ex was developed to prevent unfortunate accidents caused by gas explosions in hazardous places such as plants, gas storages, and factories.
When installed in hazardous area, combustible gas detector GTD-2000Ex will regularly and continuously detect the gas leakage and display the data with integrated LCD and to supply 4-20mA standard output. Moreover, for DC 4-20mA standard output, output part can be located up to 2,500 m from sensor part. (When using Cable CVVS or CVVSB 1.5sq above)
Combustible gas detector GTD-2000Ex should be using below 1000M above the sea level.
GASTRON氣體檢測儀GTD-2000EX-NMP其他常見型號：
GASTRON GTD-2000EX-NMP
GASTRON GTD-1000Tx
GASTRON GTD-1000Ex
GASTRON GTD-3000Tx
GASTRON GTD-3000Ex
GASTRON GIR-3000
GASTRON GSA812EX-G3
GASTRON GSA860EX-G3
GASTRON GSA700EX-G3
GASTRON Combustible gas detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GASTRON氣體檢測儀GTD-2000EX-NMP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GASTRON products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
