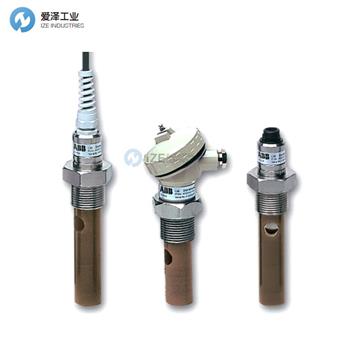

ABB AC200電極電導率電池

The AC221 conductivity cell is designed for insertion in pipelines, vessels and process sample lines in power plants, ion-exchangers, reverse osmosis and chip cleaning applications. The cells are constructed with stainless steel electrodes and are resistant to polarization, requiring virtually no maintenance. A choice of cable connection methods is available, including a detachable connector that eliminates incorrect connections. Critical temperature measurement is included with a world-beating response of less than 30 seconds, enabling rapid compensation and remote output.

Data

Stainless steel electrodes enabling measurements down to 0.055 μS/cm ultra-pure water

3/4 in. BSP or NPT process connection

Choice of 0.01 or 0.10 cell constants

Integral Pt100 temperature sensor

Maximum temperature 200 °C (392 °F)*

Maximum pressure 20 bar (290 psi)

Rapid temperature measurement T90 < 30 s

Problem-free, integral, terminal-head or detachable cable connection

Ingress protection IP 68

* When used with ABB high temperature cable

AC221電導池專為插入電廠，離子交換器，反滲透和芯片清潔應用中的管道，容器和工藝樣品管線而設計。電解池由不銹鋼電極制成，抗極化，幾乎無需維護。有多種電纜連接方法可供選擇，包括可拆卸的連接器，可消除錯誤的連接。臨界溫度測量包括不到30秒的出色響應，可實現快速補償和遠程輸出。

數據

不銹鋼電極，可測量低至0.055 μS / cm的超純水

3/4英寸BSP或NPT過程連接

選擇0.01或0.10的單元常數

一體式Pt100溫度傳感器

最高溫度200°C（392°F）*

最大壓力20 bar（290 psi）

快速溫度測量T90 <30 s

無問題的整體式端子頭或可拆卸電纜連接

防護等級IP 68

*與ABB高溫電纜一起使用時

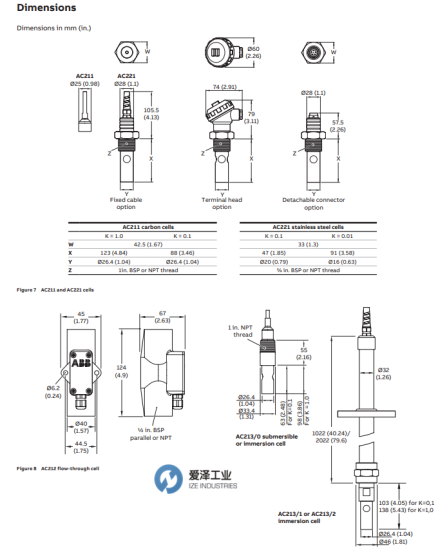

ABB電極電導率電池AC200系列外觀尺寸圖

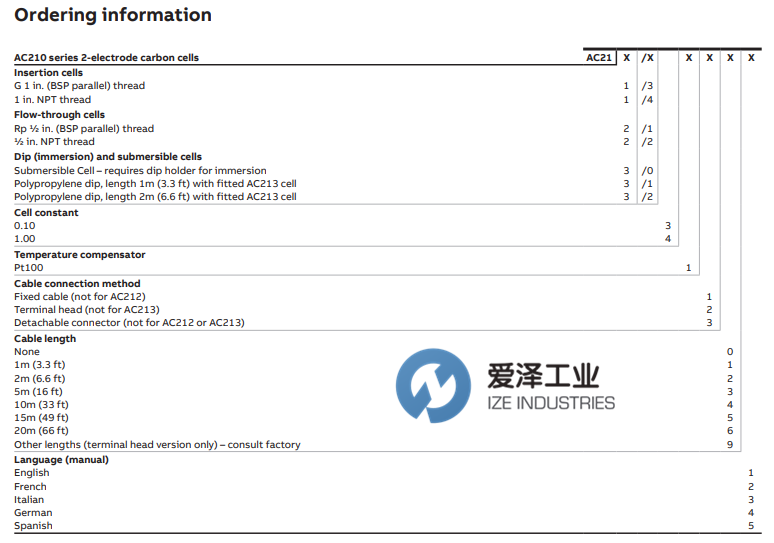

ABB電極電導率電池AC200系列型號說明

ABB電極電導率電池AC200其他常用型號：

ABB AC2.1.2/2.3.1.2.6.1./STD

ABB AC212/231261/STD

ABB AC212/231201/STD

ABB AC212/241211/STD

ABB PH electrode NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業集產品開發、設計、制造、銷售、于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于ABB電極電導率電池AC2.1.2/2.3.1.2.6.1./STD的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。

If you have any question for ABB products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.

ABB電極電導率電池AC200系列AC2.1.2/2.3.1.2.6.1./STD規格及型號描述
