HACH濁度計1720E產品參數
Specifications | |
Accuracy: | ±2% of reading or ±0.02 NTU (whichever is greater) from 0 - 40 NTU |
Accuracy 2: | ±5% of reading from 40 - 100 NTU (Defined according to ISO 15839.) |
Alarm: | When connected to sc controller: three set-point alarms, each equipped with an SPDT relay with unpowered contacts rated 5A resistive load at 230 Vac |
Certifications: | Listed by ETL to UL 61010A-1: Certified by ETL to CSA C22.2 No. 1010.1: CE certified by Hach Company to EN 61010-1 |
Certifications 2: | CE certified by Hach Company to EN61326 (industrial levels) |
Communication: | When connected to sc controller: MODBUS RS232/RS485, PROFIBUS, HART |
Compliance Certifications: | Standard Methods 2130B, USEPA 180.1, Hach Method 8195 |
Mounting: | Turbidimeter body and head assembly: wall and floor stand; sc controller: wall, pole, panel, and floor stand |
Operating Humidity: | 5 - 95 % non-condensing |
Operating Temperature Range: | 0 - 40 °C (Double Sensor System) |
Output: | Up to five selectable for 0-20 mA or 4-20 mA; output span programmable over any portion of the 0-100 NTU range; built into the sc Controller |
Power Requirements (Hz): | 50 - 60 Hz |
Power Requirements (Voltage): | 100 - 230 VAC |
Range: | 0.001 - 100 Nephelometric Turbidity Units (NTU) |
Repeatability: | Better than ± 1.0 % of reading or ±0.002 NTU, whichever is greater (Defined according to ISO 15839.) |
Response Time: | Initial response in 1 minute, 15 seconds for a full-scale step change |
Sample Flow Rate: | 200 - 750 mL/minute (3.1 - 11.9 gal/hour) |
Sample Input: | 1/4 inch NPT female, 1/4 inch compression fitting (provided) |
Sample Output: | 1/2 inch NPT female, 1/2 inch hose barb (provided) |
Sample Temperature: | 0 - 70°C (32 - 158°F) |
Ship Wt. (lbs): | 1720E Turbidimeter: 5.9 kg (13 lbs.) |
Signal Average Time: | User selectable from 0, 6, 30, 60, 90 seconds |
Storage Conditions: | -20 to 60 °C (-4 to 140 °F) |
Weight: | 1720E Turbidimeter: 5.9 kg |
HACH濁度計產品介紹

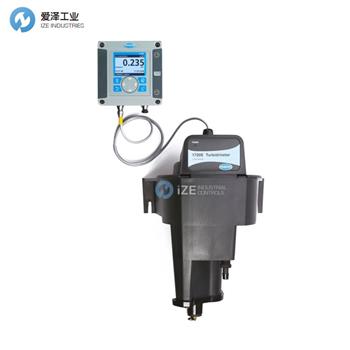

Continuously flowing sample flows through the patented* bubble removal system, which vents entrained air from the sample stream and eliminates the most significant interference in low level turbidity measurement. The 1720E Turbidimeter is not affected by variations in flow and pressure.
Simplicity
A simplified two-module design includes the sensor and the controller interface. The controller accepts two turbidity sensors; adding a second 1720E sensor makes a system with two complete turbidimeters. Connections are simple plug & play.
Data Collection and Display
The 1720E Turbidimeter uses the sc200 Controller to receive data from up to two sensors. A built-in data logger collects turbidity measurement at user selectable intervals (1-15 minutes), along with calibration and verification points, alarm history, and instrument setup changes for 6 months. Communications using Modbus? RS485, MODBUS? RS232, HART, or Profibus DP.
連續流動的樣品流經獲得專利的*氣泡去除系統，該系統可排出樣品流中夾帶的空氣，并消除低水平濁度測量中最顯著的干擾。1720E濁度計不受流量和壓力變化的影響。
簡單
簡化的雙模塊設計包括傳感器和控制器接口?？刂破鹘邮軆蓚€(gè)濁度傳感器；添加第二個 1720E 傳感器使系統具有兩個完整的濁度計。連接是簡單的即插即用。
數據收集和顯示
1720E濁度計使用sc200控制器從最多兩個傳感器接收數據。內置數據記錄器以用戶可選擇的時間間隔（1-15 分鐘）收集濁度測量值，以及6個月的校準和驗證點、警報歷史記錄和儀器設置更改。使用 Modbus? RS485、MODBUS? RS232、HART或 Profibus DP進行通信。
HACH濁度計其他常見型號：
HACH 1720E
HACH 1720C
HACH 1720D
HACH Turbidity meter NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HACH濁度計1720E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HACH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
