TRIBO.DSP U3600是TRIBO.series 2000及TRIBO.dsp U3200的替代型號
AUBURN微粒排放監測器TRIBO.DSP U3600規格
ELECTRONICS SPECIFICATIONS | |
Electronic Enclosure | Polycarbonate NEMA 4X with 3/4” conduit fittings |
Power | 85 - 260VAC standard (12 VDC or 24 VDC optional) |
Power Consumption | 5 Watts maximum load |
Operating Temperature | -22° - 185° F (-30° - 85° C) |
Humidity Range | 0 - 95% relative; non-condensing |
Dynamic Range | 1 pA - 10,000,000 pA - standard |
Resolution/Precision (pA) | 1 pA standard |
Sensitivity Range | Concentrations as low as .005mg/m3 have been detected |
Output | 2 SPDT relay 5 amp @ 28 VDC or 250 VAC 100VA |
Display | 3”x3” 4-color LCD, 8 decade log or 0 - 100% analog gauge, 6-digit display, dual alarm indicators |
Other Features | Password protection for user settings, user selectable calibrated (mg/m3 ) mode Automatic contamination check, Unlimited scaling options |
Approvals | CE Approved |
SENSOR SPECIFICATIONS | |
Remote Sensor Enclosure | Cast aluminum, electrostatically applied powder coating, equivalent NEMA 4X |
Sensor Probe | Probe - 316 stainless steel (standard); other materials available |
Wetted Metal Parts | All others - 303 stainless steel minimum grade |
Insulation | Extended High Performance (PFA)- standard, -40° - 450°F (-40° - 232°C) |
Probe Insertion Length | Standard probe lengths: 3, 6, 12, 18, 30, 36 inch (7.6, 15.2, 30.5, 45.7, 76.2, 91.4 cm) (specify to reach approximately mid-duct or further) |
Installation | Weld the supplied fitting into the pipe or duct and insert sensor |
Remote Sensor Cable | Special coaxial cable; temperature range: -60° - 400°F (-50° - 200°C) Maximum distance: contact factory |
Wiring Connections | ? inch NPT female conduit fitting |
Pipe/Duct Connections | ? inch NPT male fitting or 1” quick release ferrule (other options available) |
Options | Wire Rope Sensor; In-Line Ring Sensor; Ambient Fugitive Dust Sensor |
AUBURN微粒排放監測器TRIBO.DSP U3600產品介紹

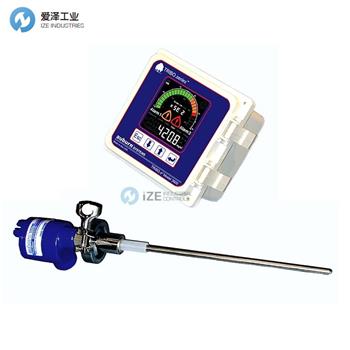

TRIBO.dsp U3600 is an advanced, self checking, particulate emissions monitor ideal for environmental compliance and dust collector maintenance applications. The unified DC/AC design and wide dynamic range, along with flexible scaling and alarm features, allows the U3600 to be used for many process flow applications.
The U3600 provides a 4-20mA output and two independent SPDT relay contacts for alarm purposes. The easy-to-read, four color screen for real-time emission levels and alarm status is continuously on display. An optional digital output (Ethernet/IP, Modbus TCP) is available for direct connection to plant network systems (PLC’s etc.) or bag leak detection systems managed by TRIBO.vision software.
TRIBO.dsp U3600 Features:
? Wide dynamic range, used to monitor flow or emissions applications
? Continuous 4-20 mA output
? Two (2) independent relays for alarm purposes
? Signal can be calibrated to display mg/m3
? No zero or drift adjustments required
? Automatic probe contamination check
? Password protection
TRIBO.dsp U3600是一種優質的自檢微粒排放監測器，非常適合環境合規和除塵器維護應用。統一的DC/AC設計和寬動態范圍，以及靈活的縮放和報警功能，使U3600可用于許多過程流應用。
U3600提供一個4-20mA輸出和兩個獨立的SPDT繼電器觸點，用于報警目的。易于閱讀的四色屏幕持續顯示實時排放水平和警報狀態?？蛇x數字輸出（以太網/IP、Modbus TCP）可用于直接連接到工廠網絡系統（PLC 等）或由TRIBO.vision軟件管理的袋子泄漏檢測系統。
TRIBO.dsp U3600特點：
? 寬動態范圍，用于監測流量或排放應用
? 連續 4-20 mA 輸出
? 兩 (2) 個獨立繼電器用于報警目的
? 可以校準信號以顯示 mg/m3
? 無需零位或漂移調整
? 自動探頭污染檢查
? 密碼保護
AUBURN微粒排放監測器其他型號：
AUBURN TRIBO.dsp U3400
AUBURN TRIBO.dsp U3600
AUBURN TRIBO.dsp U3800
AUBURN TRIBO.dsp U3200
AUBURN TRIBO.dsp U3300
AUBURN Particulate emission monitor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AUBURN微粒排放監測器TRIBO.DSP U3600的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for AUBURN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
