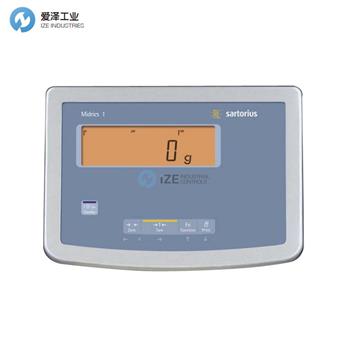

SARTORIUS比例指示器MIS1產品參數
Technical specifications | |
Maximum readability | 15,000 digits |
Accuracy classes | |
Number of verification scale intervals (configured for single range, multiple range model) | <=3000e, 2x 3000e according to EN 45501 |
Load cell connection | |
Input voltage | 8,4 V |
Available sensor technology | 4 or 6-conductor technology |
Bridge impedance | 83 to 2000 ohms |
Measuring signal variation | 0 mV to 29,4 mV |
Measuring signal/verification scale interval | min. 0,672 μV/e |
Sensitivity | 4 million digits max. (internal resolution) |
Digital, protected interface | According to EN45501 |
Data interface | Optional: RS-232, RS-485, RS-422, 4-20mA |
Additional interface port | 2 |
Display | 20mm LCD, 14-segment, backlit |
Housing | |
Material | Stainless steel: AISI type 304 |
Type of protection acc. to EN 60529 | IP65 |
Temperature range | -10°C bis +40°C |
Power supply | 100-240 VAC (-15/+10%), 50-60 Hz, max. 17W/23VA |
DC power supply | Optional 24 VDC (+/-5%), max.12 W |
AC power supply | Optional 24 VAC (+/-5%), 50-60 Hz, max. 12W |
Battery operation | Optional via internal or external rechargeable battery pack |
Performance specifications of the built-in A/D converter: weighing capacity | Up to 256t |
Power cord length | 3m |
Net weight (approx.) | 2,3 kg |
Limitation of emissions | Acc. to EN61326-1, Class B (IEC61326-1) |
Defined immunity to interference | Acc. to EN61326- 1, industrial environments (IEC61326-1) |
Electrical safety | Acc. to EN61010-1 (IEC 61010-1) |
SARTORIUS比例指示器MIS1產品介紹
? 顯示屏：背光、14 段、20 毫米 LCD 用于重量讀數
? 用于連接模擬平臺的集成 A/D 轉換器
? 材質：AISI 304 不銹鋼
? IP 保護：IP65
? 可選 RS-232、RS-485、RS-422、4-20mA
? Display: backlit, 14-segment, 20 mm LCD for weight readouts
? Integrated A/D-converter for connecting analog platforms
? Material: AISI 304 stainless steel
? IP-Protection: IP65
? Optional RS-232, RS-485, RS-422, 4-20mA
SARTORIUS比例指示器其他常見型號：
SARTORIUS MIS1
SARTORIUS MIS2
SARTORIUS Scale Indicator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SARTORIUS比例指示器MIS1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SARTORIUS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
