DILO氣體分析儀C4-3-039R-R501技術參數
Technical data | |
Dimensions (W x H x D) | 538 x 269 x 406 mm |
Weight | 25 kg |
Inlet pressure pe | 0.2 - 35 bar |
Operating temperature | -10 to +50 °C |
Ambient moisture | max. 90 % relative moisture, non condensing |
Operating voltage | 85 - 264 V AC |
Frequency | 47 - 63 Hz |
Number of max. measured values to be stored | 500 |
Interface | USB / LAN / WiFi |
Measuring time | max. 7 min variable calculated by the system |
Protection class | IP65 (device closed) / IP20 (device opened) |
Measuring principle of mol.-% sensor in CO2 or N2 | Non-dispersive infrared sensor (NDIR) (C4-FN) |
Measuring range mol.-% sensor in CO2 or N2 | 0 - 10 mol % (C4-FN) |
Measuring accuracy mol.-% sensor in CO2 or N2 | ≤ 0.1 mol % at < 7% (C4-FN) |
Measuring accuracy mol.-% sensor in CO2 or N2 | ≤ 0.2 mol % at ≥ 7% (C4-FN) |
Measuring principle of moisture sensor | Electronic dew point measurement (capacitive)(C4-FN) |
Measuring range of moisture sensor | -60 to +20 °C (C4-FN) |
Measuring accuracy of moisture sensor | ≤ ± 2 °C °C (at > ?40 °C ) (C4-FN) |
Measuring accuracy of moisture sensor | ≤ ± 3 °C °C (at < ?40 °C ) (C4-FN) |
Measuring principle mol.-% O2 sensor | Electrochemical reaction (C4-FN) |
Measuring range mol.-% O2 sensor | 0 - 25 mol % (C4-FN) |
Measuring accuracy mol.-% O2 sensor | ≤ ± 0.2 % mol % (C4-FN) |
Measuring principle mol.-% CO2 sensor | Non-dispersive infrared sensor (NDIR) (C4-FN) |
Measuring range mol.-% CO2 sensor | 0 – 100 mol % (C4-FN) |
Measuring accuracy mol.-% CO2 sensor | ≤ ± 2 mol % (C4-FN) |
Measuring principle concentration CO sensor | Electrochemical reaction (C4-FN) |
Measuring accuracy concentration CO sensor | 0 – 500 ppm (C4-FN) |
Measuring accuracy concentration CO sensor | ≤ ± 2 % of measuring range (C4-FN) |

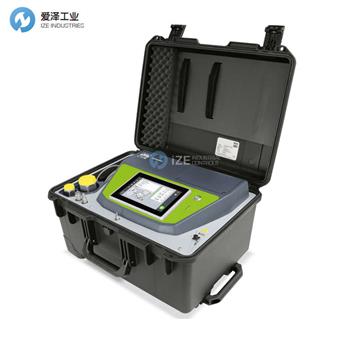

DILO氣體分析儀C4-3-039R-R501產品介紹
憑借其創新的設備，MultiAnalyser C4 滿足了用戶的要求，開機后即可立即運行。 高質量的制造和符合人體工程學的設計保證了緊湊型、易于維護且測量精度高的測量設備的質量標準。 這種多功能測量設備僅用一個樣品即可無排放地測定多達五個測量參數。 根據單個設備配置，可以確定集成傳感器的值。 由于易于拆卸的集成電池，運輸法規不再是問題。 現場可更換電化學傳感器具有很大的優勢，因為該設備在更換后可以立即使用，無需任何停機時間。
MultiAnalyser C4 允許采用不同的操作方法來無排放地處理被測氣體。 一方面將被測氣體送入裝置內部儲存，送入外置氣瓶或外置排氣收集袋； 對于不抽回氣體的連續測量，建議將氣體收集在外部排放氣體收集袋中。 另一方面，將氣體泵回到外部氣缸、容器或氣室中，壓力高達 10 bar pe。 此外，可以使用 MultiAnalyser C4、DILO 服務推車或壓縮機裝置清空外部袋子。
該測量設備通過 7" 觸摸屏提供自動化操作?？梢酝ㄟ^ WiFi 通過智能手機、平板電腦或筆記本電腦等移動終端設備進行操作和交換數據。自動顯示電化學傳感器的剩余壽命。集成到 手推車，可以安全舒適地運輸測量設備?，F(xiàn)代控制技術與多語言用戶友好界面相結合，使設備操作簡單方便。
With its innovative equipment, the MultiAnalyser C4 perfectly meets the user’s requirements and is ready for operation immediately after switching on. High-quality manufacture and ergonomic design guarantee the quality standards for a compact and maintenance-friendly measuring device with high measuring accuracy. This multi-functional measuring device allows the emission-free determination of up to five measuring parameters with only one sample. Depending on the individual device configuration, values of the integrated sensors can be determined. Thanks to the easy-to-remove integrated battery, transport regulations are no longer an issue. Our field-replaceable electrochemical sensors offer a great benefit as the device is ready for use immediately after replacement without any down times.
The MultiAnalyser C4 allows different methods of operation for emission-free handling of the measured gas. On the one hand the internal storage of the measured gas into the device, into an external cylinder or an external discharge gas collecting bag; for continuous measurements without pumping the gas back it is recommended to collect the gas in an external discharge gas collecting bag. On the other hand pumping the gas back into an external cylinder, vessel or gas compartment up to 10 bar pe. Furthermore, the external bag can be emptied by using the MultiAnalyser C4, a DILO service cart or compressor unit.
The measuring device offers automated operation via a 7" touch screen. It is possible to operate and exchange data by means of mobile end devices such as smartphones, tablets or laptops via WiFi. The remaining lifetime of the electrochemical sensors is automatically displayed. Integrated into a trolley, the measuring device can be transported in a safe and comfortable way. Modern control technology in conjunction with a user-friendly interface in several languages make device operation simple and convenient.
DILO氣體分析儀C4系列其他常用型號：
DILO C4-3-039R-R101
DILO C4-3-039R-R201
DILO C4-3-039R-R301
DILO C4-3-039R-R501
DILO Gas Analyzer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DILO氣體分析儀C4-3-039R-R501的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for DILO products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
