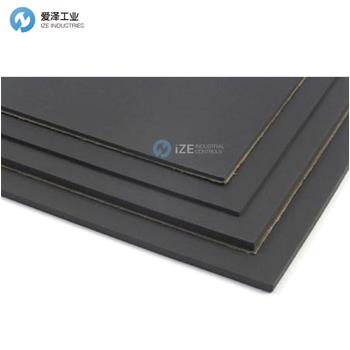

LAIRD吸收材料BSR-1 303400602技術參數
Technical Specification | |
Typical Properties | |
Color | Black |
Function | Cavity resonance |
Operating Temperature Max (Celsius) | 170 |
Operating Temperature Min (Celsius) | -40 |
Outgassing CVCM (%) | 0.28 |
Outgassing TML (%) | 0.47 |
Resin | Silicone |
Shelf Life | Minimum 720 Days from Date of Shipment |
Type | Cavity resonance elastomer |
Electromagnetic Properties | |
Insertion loss | 2 dB at 10 Ghz |
Part Frequency Range | 6 - 18 Ghz |
Electrical Properties | |
Volume Resistivity | 2 x10^8 Ohm-cm |
Mechanical Properties | |
Hardness | >70 shores A |
Tensile Strength (Mpa) | 5 |
Dimensions | |
Length (mm) | 305 |
Shape | Square |
Thickness (mm) | 0.5 |
Width(mm) | 305 |
Compliance | |
Lead Free | Yes |
REACH | Yes |
ROHS Compliant | Yes |
Static Sensitive | No |
UL Flammability Rating | UL94 V0 |
Options | |
Option Availability - PSA | Yes |
Option Availability - on drawing | Yes |
LAIRD吸收材料BSR系列介紹
它具有低釋氣性和耐高溫性。BSR/MFS很靈活，可以擬合復合曲線。它有 2 個版本 BSR-1 和 BSR-2。
特點
靈活的結構提高了貼合度
高熱穩定性
不導電
高磁損耗
低排氣量
It has low outgassing properties and high temperature resistance. BSR / MFS is flexible and can be fitted to compound curves. It is available in 2 versions BSR-1 and BSR-2.
Features
Flexible structure for improved fit
High thermal stability
Electrically non-conductive
High magnetic loss
Low outgassing
LAIRD吸收材料BSR系列其他常用型號：
LAIRD BSR-1 303400601
LAIRD BSR-1 303400602
LAIRD BSR-1 303400604
LAIRD BSR-1 303400606
LAIRD BSR-1 303400610
LAIRD BSR-2
