PRESSOL潤滑脂泵18716051技術參數
Technical data | |
Length of suction tube (mm) | 1000 |
Pressure ratio | 50:1 |
Max. diameter (mm) | 130 |
Max. air pressure (bar) | 8 |
Min. air pressure (bar) | 2 |
Recommended air pressure (bar) | 6 |
Cylinder capacity engine (cm3) | 220 |
Cylinder capacity pump (cm3) | 8 |
Quantity of strokes at 8 bar at a free-flow (strokes/min) | 220 |
Pump capacity at 8 bar at a free-flow (g/min) | 1100 |
Pump pressure at 8 bar air pressure (bar) | 400 |
Air consumption at 8 bar air pressure (l/min) | 400 |
Length of discharge pipe work | depends on size of installation. |
Max. suction heigth | The pump is constructed to be operated directly at the point of suction |
Compressed air connection | G 1/4'' female |
Grease connection, suction side (? mm) | 35 |
Grease connection, pressure side | G 1/4'' male |
Noise level idle running acc. to ISO 9614-2 at a distance of 2 m (db A) | 78 |
Noise level under load acc. to ISO 9614-2 at a distance of 2 m (db A) | 77 |
Viscosity of discharged liquid | grease up to NLGI 2 |
Classical liquids to be discharged | lubricating greases |
Time duration for 1 complete container draining | 50 kg of grease in 50 min. |
Lacquering | blue, Pantone 294 C |
Weight (kg) | 8,5 |
Length of engine (mm) | 225 |
Weight of motor (kg) | 3400 |
PRESSOL潤滑脂泵18716051產品介紹
氣動油脂泵 50:1
SRL 1000-200 公斤容器

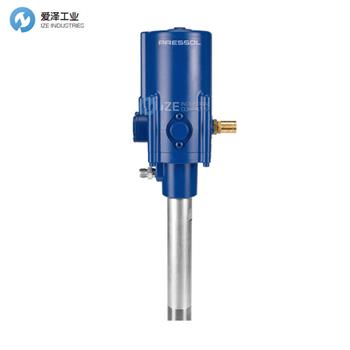

Pneumatic grease pump 50:1
SRL 1000-200-kg-container
PRESSOL潤滑脂泵50:1系列其他常用型號：
PRESSOL 18 710 950
PRESSOL 18 710 051
PRESSOL 18 711 051
PRESSOL 18 713 051
PRESSOL 18 716 051
PRESSOL PNEUMATIC GREASE PUMPS NEW + ORIGINAL+ ONE YEAR WARRANTY
