ILC潤滑泵CME系列技術參數
Technical data | |
Reservoir capacity | 2l - 3l |
Capacities measured | 100cc/1' 50Hz |
Outlet connections | 2 BSP 1/4” seats (standard supplied with 1 left-hand lock cap) |
Electrical connections | 1 cable gland for power supply |
Filling | Cap with 200 μ load filter |
Pressure gauge | 0 - 60 bar |
Operating pressure | 24-30 bar |
Lubricants | Oils 50 to 1000 cSt |
Operating temperature | 0°C - 50°C |
Protection rating | IP-54 |
Weight (reservoir empty) | 3.5 Kg (2l) |
ILC潤滑泵CME系列介紹
CME 電動泵專為配備有容積計量閥或氣油混合器的單線潤滑系統而開發。
該裝置由齒輪泵、電動機、低液位開關、電子控制卡（可根據要求提供）、綠色LED指示燈（指示電源開啟）、黃色LED指示燈（指示泵工作）、壓力表、中間潤滑按鈕和壓力開關組成。壓力開關也可安裝在主油路末端。
塑料蓋可保護電子元件免受污垢或灰塵等環境因素的影響。透明的耐沖擊儲液器容量為 2 升或 3 升。
一組提供減壓和旁通功能的閥門與齒輪泵相連。
可使用的潤滑劑為粘度范圍在 50 至 1000 cSt 之間的潤滑油 (CME-O) 或 NLGI 稠度為 000-00 的軟脂 (CME-G)。兩種型號配備不同的液位控制傳感器。

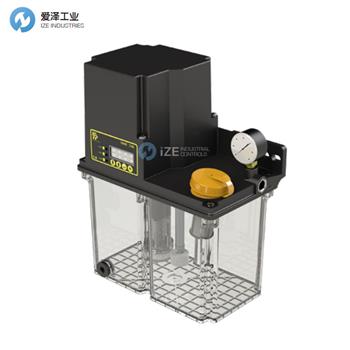

CME electric pumps have been developed for single line lubrication systems fitted with volumetric metering valves or air-oil mixers.
The unit consists of a gear pump, an electric motor, a low level switch, an electronic control card (upon request), a green LED (indicates power ON), a yellow LED (indicates pump working), a pressure gauge, a push button for intermediate lubrication and a pressure switch. Alternatively, the pressure switch can also be put at the end of the main line.
The plastic cover protects the electrical components from environmental conditions like dirt or dust. The transparent impact-resistant reservoir has a capacity of 2 or 3 litres.
A set of valves which provides the decompression and bypass functions is connected to the gear pump.
The lubricants that can be used are oil with a viscosity range between 50 and 1000 cSt (CME-O) or soft grease with a NLGI consistency of 000-00 (CME-G). The two models have different sensors fitted for level control.

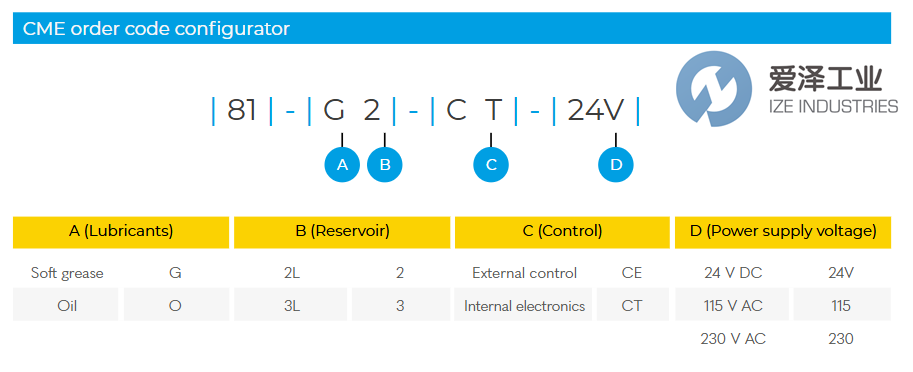

ILC潤滑泵CME系列選型
ILC潤滑泵CME系列其他常用型號：
ILC 81.Z03361.001
ILC 81-G2-CE-115
ILC 81-G2-CE-230
ILC 81-G2-CE-24V
ILC 81-G2-CT-115
ILC 81-G2-CT-230
ILC 81-G2-CT-24V
ILC 81-G3-CE-24V
ILC 81-O2-CE-115
ILC 81-O2-CT-230
ILC 81-O3-CE-24V
ILC 81-O3-CE-115
ILC 81-O2-CE-24V
ILC 81-G3-CT-230
ILC 81-O2-CE-230
