NORDSTROM注脂裝備HYPREGUN PLUS 5Q產品介紹

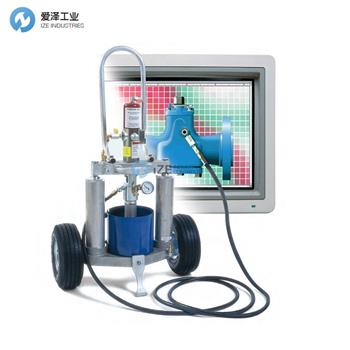

The Nordstrom Hypregun-Plus 5G was developed using the original Nordstrom Hypregun design and modifications as suggested by many Hypregun owners. This design continues to meet field and plant maintenance needs of valve users.

The Hypregun-Plus 5G is ideal for large scale valve servicing in refineries, compressor stations, gasoline plants, cycling plants, pipelines, and manifold installations.

The Hypregun-Plus 5G is a compact, highly efficient, air operated sealant injection device with a 100:1 pressure ratio, double-acting piston and five-gallon can. Continued positive pressure applied to the side cylinders assures intimate contact between the follower plate and sealant. Positive pressure makes it possible for the Hypregun-Plus 5G to pump sealant at a much lower temperature than is possible with dispensing equipment without this feature.

The follower plate is engineered to promote flow of sealant to the foot valve at all workable air pressures, but air pressures between 100 and 125 psi (6.9 to 8.6 bar) give the most efficient operation. Lower air pressure can be used but the gun delivery volume will be reduced accordingly. It is important that the gun not be used on air pressures exceeding the 125 psi (8.6 bar) rating of the air motor. The air motor uses a maximum of 11.4 cubic feet of air per minute when operated at 125 psi (8.6 bar) air pressure and with zero load. Reduced air pressure and increased load reduce air consumption although not linearly.

The amount of sealant delivered by the Hypregun-Plus 5G depends on available air pressure to the gun, type of sealant and the temperature at which the sealant is dispensed.

A moisture trap (not supplied with the gun) for use on air sources containing appreciable amounts of water is quite advantageous for low temperature applications. Moisture, if allowed to reach the air motor,can condense and freeze, causing the air motor to stall. Air line filters for removing moisture from the air supply are available from several manufacturers.

The Hypregun-Plus 5G is designed to use five-gallon (18.9 litre) sealant cans, which have been materially strengthened with welded seams. The five-quart conversion kit provides the option of using a five-quart can in the five-gallon gun. These cans are standard for all Nordstrom Valves bulk sealants. The container shield supplied with each gun gives added strength to the can.

Nordstrom Hypregun-Plus 5G 是根據許多 Hypregun 所有者的建議使用原始 Nordstrom Hypregun 設計和修改開發的。這種設計繼續滿足閥門用戶的現場和工廠維護需求。

Hypregun-Plus 5G 是煉油廠、壓縮機站、汽油廠、循環廠、管道和歧管裝置中大規模閥門維修的理想選擇。

Hypregun-Plus 5G 是一種緊湊、高效、氣動密封劑注射裝置，具有 100:1 的壓力比、雙作用活塞和 5 加侖罐。對側缸持續施加正壓，確保隨動板和密封劑之間的緊密接觸。正壓使 Hypregun-Plus 5G 能夠在比沒有此功能的點膠設備低得多的溫度下泵送密封劑。

隨動板設計用于在所有可用氣壓下促進密封劑流向底閥，但 100 至 125 psi（6.9 至 8.6 巴）之間的氣壓可提供最有效的操作?？梢允褂幂^低的氣壓，但噴槍的輸送量會相應減少。重要的是，不要在超過氣動馬達額定值 125 psi (8.6 bar) 的氣壓下使用噴槍。在 125 psi (8.6 bar) 氣壓和零負載下運行時，氣動馬達每分鐘最多使用 11.4 立方英尺的空氣。降低空氣壓力和增加負載減少空氣消耗，盡管不是線性的。

Hypregun-Plus 5G 輸送的密封劑量取決于噴槍的可用氣壓、密封劑類型和分配密封劑的溫度。

用于含有大量水的空氣源的水分捕集器（不隨噴槍提供）對于低溫應用非常有利。濕氣，如果允許到達氣動馬達，會冷凝和凍結，導致氣動馬達失速。有多家制造商提供用于去除供氣中水分的空氣管路過濾器。

Hypregun-Plus 5G 設計使用 5 加侖（18.9 升）密封劑罐，該罐已通過焊縫進行了材料強化。五夸脫轉換套件提供了在五加侖噴槍中使用五夸脫罐的選項。這些罐是所有 Nordstrom Valves 散裝密封劑的標準配置。每支槍隨附的容器護罩增加了罐子的強度。
