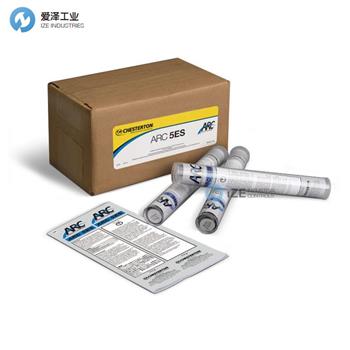

CHESTERTON修補劑ARC 5ES產品參數
Technical Data | |||
Composition Matrix | A modified epoxy resin reacted with aliphatic amine curing agent | ||
Reinforcement | Proprietary quartz material pretreated with polymeric coupling agent | ||
Color | Black | ||
Consistency | Putty Like | ||
Density | 2.2 g/cc | 136 lb./cu.ft. | |
Cure Time to 90% Shore D | 9 minutes | ||
Dielectric Strength | (ASTM D 149) | 12 v/μ | 300 V/Mil |
Hardness Shore D | 80 | ||
Compressive Strength | (ASTM D 695) | 280 kg/cm2 (27.4 MPa) | 4,000 psi |
Lap Shear Adhesion | (ASTM D 1002) | ||
Unclean | 120 kg/cm2 (11.8 MPa) | 1,700 psi | |
SSPC SP3 - Dry | 300 kg/cm2 (29.4 MPa) | 4,200 psi | |
SSPC SP3 - Wet | 150 kg/cm2 (14.7 MPa) | 2,200 psi | |
Working Time at 21°C (70°F) | 5 minutes | ||
Temperature Limit | Wet | 54°C | 130°F |
Dry | 121°C | 250°F | |
Shelf life (unopened containers) | 2 years [stored between 10°C (50°F) and 32°C (90°F) in dry, covered facility] | ||
CHESTERTON修補劑ARC 5ES產品介紹
Patch and seal leaks up to 3 mm (.125”) diameter
Cure underwater and on damp surfaces
Meet the requirements of NSF 61 for cold water service
Easily apply by kneading together and press-affixing to surface
Features & Benefits
Rapid cure properties
Faster return to service
Emergency leak sealing
High viscosity
Easy to apply
Applies to wet surfaces
“2 in 1” packaging
Enhances safe use
Moisture tolerant formula
Bonding to wet surfaces
Versatile epoxy
修補和密封泄漏直徑達 3 毫米 (.125”)
在水下和潮濕表面上固化
滿足 NSF 61 對冷水服務的要求
通過揉合和壓貼于表面輕松涂抹
特點與優勢
快速固化特性
更快地恢復服務
緊急泄漏密封
高粘度
易于申請
適用于潮濕表面
“二合一”包裝
增強安全使用
耐濕配方
與潮濕表面的粘合
多功能環氧樹脂
