RECHNER傳感器IAS-10-A22-S-M12-PTFE/VAB-100C-Z10-0技術參數
Technical data | Non-flush mountable |
Operating distance Sn | 4 mm |
Electrical version | 3-wire DC |
Output | Normally open (NO) |
Type PNP | IAS-10-A22-S-100°C |
Art.-No. | IA 0006 |
Connection diagram No. | 4 |
Operating voltage (UB) | 10...35 V DC |
Output current max. (Ie) | 150 mA |
Voltage drop max. (Ud) | ≤ 2.5 V |
Permitted residual ripple max. | 0.1 |
No-load current (Io) | Typ. 15 mA |
Frequency of operating cycles max. | 2 kHz |
Permitted ambient temperature | -25...+100° C |
LED-display | Yellow |
Protective circuit | Built-in |
Degree of protection IEC 60529 | IP 67 |
Norm | EN 60947-5-2 |
Connection | 10 m, 3 x 0,22 mm2 |
Housing material | VA No. 1.4305 |
Active surface | PTFE (FDA 21 CFR 177.1550) |
Lid | PA / PPO |

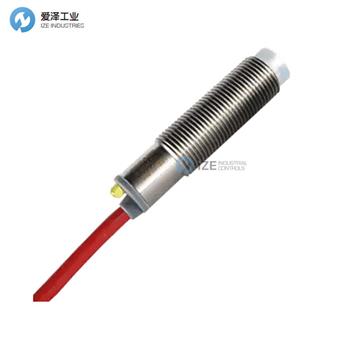

RECHNER傳感器IAS-10-A22-S-M12-PTFE/VAB-100C-Z10-0產品介紹
外殼 M 12 x 1
? 外殼材料 不銹鋼 VA
? 感應距離Sn = 4 mm
? 可用于高達 +100° C 的環境溫度
Housing M 12 x 1
? Housing material Stainless steel VA
? Sensing distance Sn = 4 mm
? Useable for an ambient temperature up to +100° C
RECHNER傳感器IAS系列其他常用型號：
RECHNER IAS-10-A11-S-M8-PA/VAb-Z02-0
RECHNER IAS-10-A24-S-M30-PVC/MS-Z02-0
RECHNER IAS-10-A14-S-M30-PVC/MS-Z02-0
RECHNER IAS-10-A21-S-M8-PBT/VAb-Z02-0
RECHNER IAS-10-M8-?-M8-PA/VAb-Y7-0
RECHNER IAS-10-M8-S-M8-PA/VAb-Y7-0
RECHNER IAS-10-A24-IL20-M30-PTFE/MS-Z02-E-1
RECHNER Inductive Sensors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RECHNER傳感器IAS-10-A22-S-M12-PTFE/VAB-100C-Z10-0的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RECHNER products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
RECHNER傳感器IAS-10-A22-S-M12-PTFE/VAB-100C-Z10-0技術參數及介紹
