RECHNER傳感器IAS-10-A22-S-M12-PA/VAb-Z02-0 102400技術參數
Technical data | Non-flush mountable |
Operating distance Sn | 4 mm |
Electrical version | 3-wire DC |
Output function | Normally open |
Type PNP | IAS-10-A22-S-M12-PA/VAb-Z02-0 |
Art.-No. | 102 400 |
Operating voltage (UB) | 10...35 V DC |
Voltage drop max. (Ud) | ≤ 2.5 V |
Operating current (Ie) | 0...150 mA |
No-load current (Io) | Typ. 15 mA |
Frequency of operating cycles max. | 2 kHz |
Permitted ambient temperature | -25...+70 °C |
LED-display | Yellow |
Protective circuit | Built-in |
Degree of protection IEC 60529 | IP 67 |
Norm | EN 60947-5-2 |
Connection cable | 2 m, PUR, 3 x 0,14 mm2 |
Housing material | Stainless steel VA No. 1.4305 (AISI 303) |
Active surface | PA / PPO |
Lid | PA / PPO |
Accessories (is delivered with the sensor) | 2 nuts M 12 x 1 |
RECHNER傳感器IAS-10-A22-S-M12-PA/VAb-Z02-0 102400產品介紹
電感式傳感器
系列 10 - PNP
外殼 M 12 x 1
? 外殼材質：不銹鋼 VA No. 1.4305 (AISI 303)
? 感應距離 Sn = 4 mm

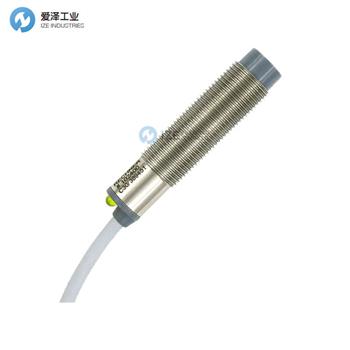

Inductive Sensors
Series 10 - PNP
Housing M 12 x 1
? Housing material: Stainless steel VA No. 1.4305 (AISI 303)
? Sensing distance Sn = 4 mm
RECHNER傳感器IAS系列其他常用型號：
RECHNER IAS-10-A11-S-M8-PA/VAb-Z02-0
RECHNER IAS-10-A24-S-M30-PVC/MS-Z02-0
RECHNER IAS-10-A14-S-M30-PVC/MS-Z02-0
RECHNER IAS-10-A21-S-M8-PBT/VAb-Z02-0
RECHNER IAS-10-M8-S-M8-PA/VAb-Y7-0
RECHNER IAS-10-A24-IL20-M30-PTFE/MS-Z02-E-1
RECHNER IAS-10-A22-S-M12-PA/VAb-Z02-0 102400
RECHNER IAS-10-A22-S-M12-PBT/MS-Z03-0
RECHNER IAS-10-A22-S-M12-PTFE-Z05-0
RECHNER IAS-10-A14-IL20-M30-PTFE/MS-Z02-1
RECHNER INDUCTIVE SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
