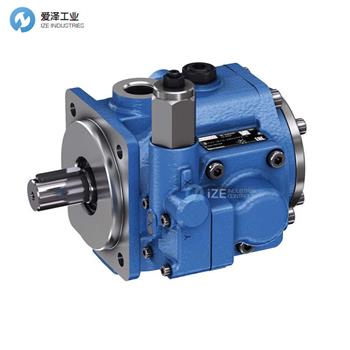

REXROTH葉片泵P2V7/63-94C0+R4/5,00-500RE07+A01E4 R900937363技術參數

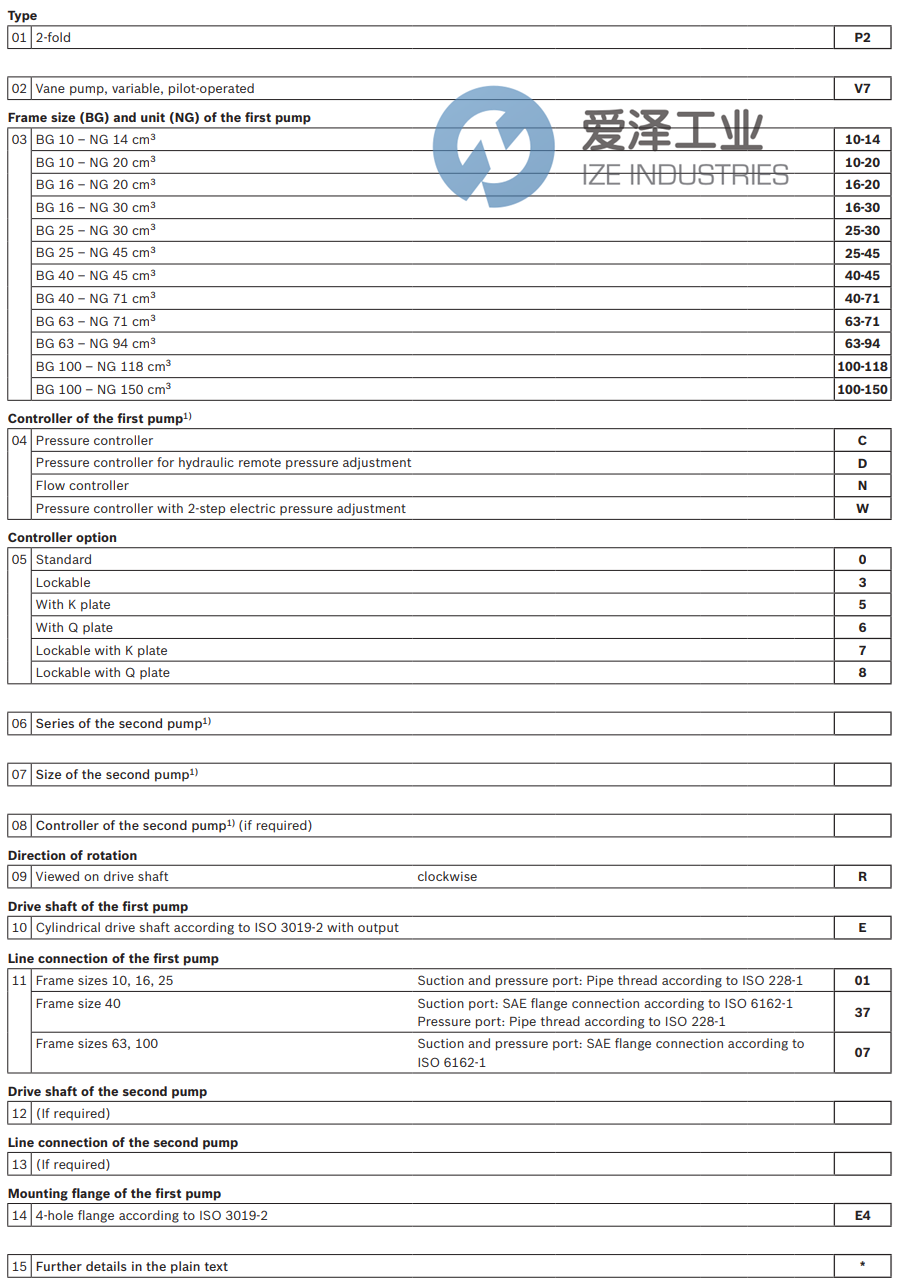

Code | P2V7/63-94C0+R4/5,00-500RE07+A01E4 |
Type | P2V7 = 2-fold, Vane pump, variable, pilot-operated |
Frame size (BG) and unit (NG) of the first pump | 63-94 = BG 63 ? NG 94 cm3 |
Controller of the first pump | C = Pressure controller |
Controller option | 0 = Standard |
Series of the second pump | R4 |
Size of the second pump | 5,00 |
Controller of the second pump (if required) | 500 |
Direction of rotation | R = Viewed on drive shaft, clockwise |
Drive shaft of the first pump | E = Cylindrical drive shaft according to ISO 3019-2 with output |
Line connection of the first pump | 07 = Frame sizes 63, 100; |
Drive shaft of the second pump | A |
Line connection of the second pump | 1 |
Mounting flange of the first pump | E4 |
REXROTH葉片泵 PV7系列介紹
特征
? 可變排量
? 運行噪音低
? 流體動力潤滑滑動軸承延長了軸承的使用壽命
? 壓力和流量可控制
? 低磁滯
? 非常低的上升控制時間和下降控制時間
? 安裝尺寸符合 ISO 3019-2。
? 連接尺寸符合 ISO 6162-1 和 ISO 228-1
? 適用于 HLP、HETG、HEES 和 HFD-U 液壓油
? 標準系列PV7單泵可與多泵以及內齒輪泵、外齒輪泵、軸向柱塞泵和徑向柱塞泵組合。
? 用于具有可變流量要求且在壓力保持功能中占有較高份額的連續運行驅動器，例如：
– 機械工具
– 靜壓軸承
– 恒壓系統
? 尺寸 14 至 150
? 組件系列1X
? 最大工作壓力 160 bar
? 最大流量 270 升/分鐘
Features
? Variable displacement
? Low operating noise
? Extended bearing life cycle thanks to hydrodynamically lubricated plain bearings
? Pressure and flow can be controlled
? Low hysteresis
? Very low control up times and down control times
? Mounting dimensions according to ISO 3019-2.
? Connection dimensions according to ISO 6162-1 and ISO 228-1
? Suitable for HLP, HETG, HEES and HFD-U hydraulic fluids
? Standard Series PV7 single pumps can be combined with multiple pumps as well as internal gear, external gear, axial piston and radial piston pumps.
? Used for drives in continuous operation with variable flow requirement and a high share in the pressure holding function, e.g.:
– machine tools
– hydrostatic bearings
– constant pressure systems
? Size 14 to 150
? Component series 1X
? Maximum operating pressure 160 bar
? Maximum flow 270 l/min
REXROTH葉片泵 PV7系列選型
REXROTH葉片泵 PV7系列其他常用型號：
REXROTH P2V7/10-14C0+V7/10-14C0RE01+01E4
REXROTH P2V7/16-20C0+V7/16-20C0RE01+01E4
REXROTH P2V7/25-30C0+V7/25-30C0RE01+01E4
REXROTH P2V7/40-45C0+V7/40-45C0RE37+37E4
REXROTH P2V7/63-71C0+V7/63-71C0RE07+07E4
REXROTH P2V7/100-118C0+V7/100-118C0RE07+07E4
REXROTH P2V7/10-14C0+GF1/4,1RE01+E01E4
REXROTH P2V7/25-45C0+GF1/4,1RE01+E01E4
REXROTH P2V7/10-14C0+GF2/016RE01+J20E4
REXROTH P2V7/10-14C0+GP2/011RE01+E20E4
REXROTH P2V7/10-14C0+GH2/005RE01+R07E4
REXROTH P2V7/10-14C0+GH3/013RE01+07E4
REXROTH P2V7/10-14C0+AZPF/016RE01+R20E4
REXROTH P2V7/25-45C0+A10VSO10DFR-RE07+64E4
REXROTH P2V7/63-94C0+R4/5,00-500RE07+A01E4 R900937363
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
