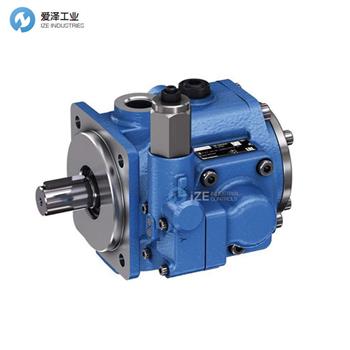

REXROTH葉片泵PV7-1X/16-30RE01MC0-08 R900533582技術參數
Product attributes | |
Displacement type | variable |
Size [cm3] | 30 |
Product family | PV7...C/D/N/W |
Operating pressure, max. [bar] | 80 |
Max. flow [l/min] | 54 |
Through-drive | with |
Direction of rotation | clockwise rotation |
Shaft end | Cylindrical ? 25 mm with fitting key, ISO 3019-2 |
Mounting flange | 4-hole mounting flange 100B4HW according to ISO 3019-2 |
Hydraulic fluid | HLP,HLPD,HVLP,HVLPD |
Seals | NBR |
Weight [kg] | 15.51 |
REXROTH葉片泵PV7系列介紹
工業用途高可靠性。低噪音和脈動水平。低滯后性和高重復精度帶來精確的控制行為?？膳c其他力士樂泵靈活組合。
? 旋轉葉片變量泵
? 適用于開式回路工業應用
? 帶 NBR 密封件
? 鑄鐵外殼
High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps.
? Rotary vane variable displacement pump
? For industrial applications in open circuit
? With NBR seals
? Cast iron housing

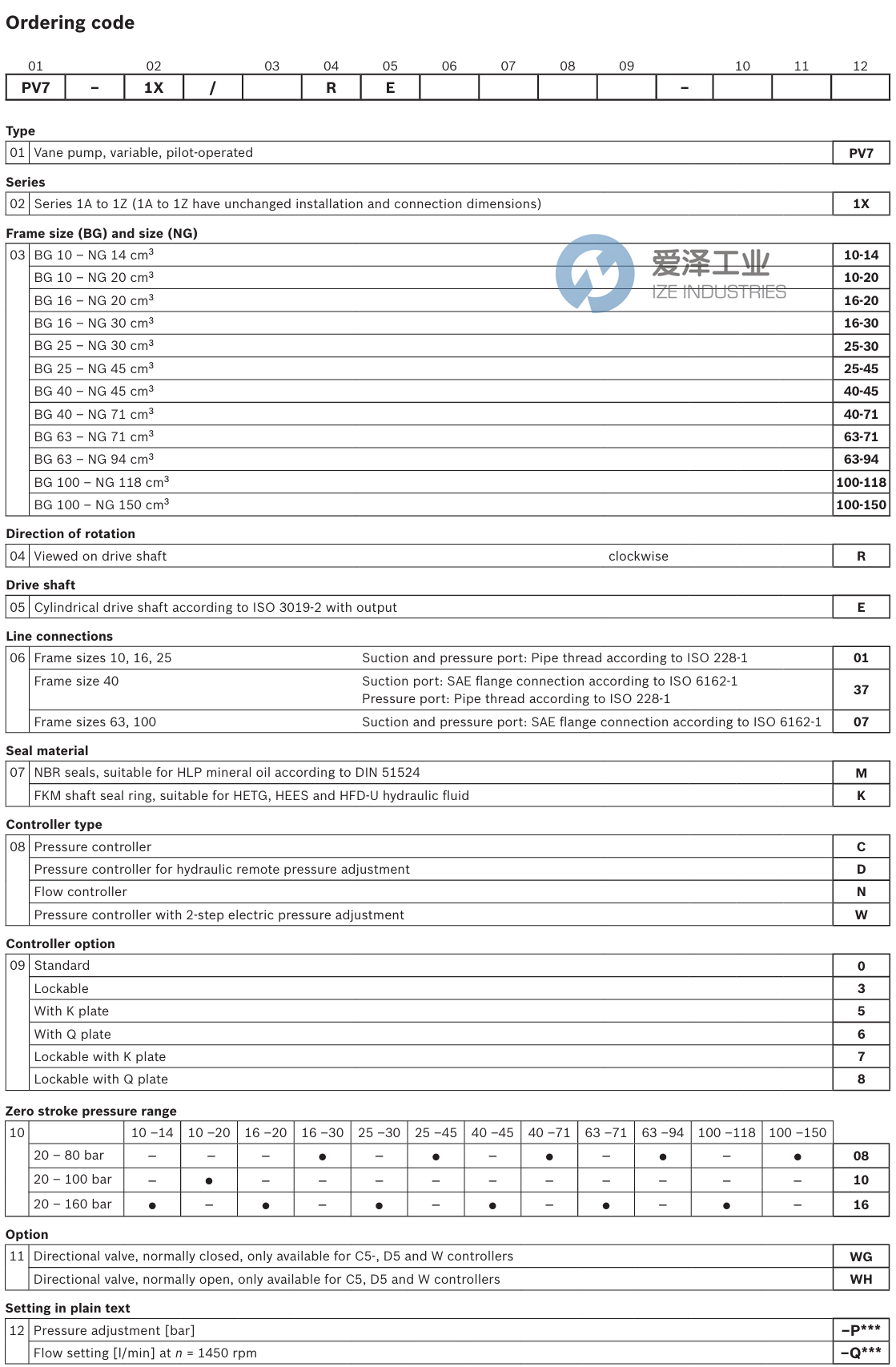

REXROTH葉片泵PV7系列選型
REXROTH葉片泵PV7系列其他常用型號：
REXROTH PV7-1X/10-14RE01MC0-16 R900580381
REXROTH PV7-1X/10-20RE01MC0-10 R900534143
REXROTH PV7-1X/16-20RE01MC0-16 R900580382
REXROTH PV7-1X/16-30RE01MC0-08 R900533582
REXROTH PV7-1X/25-30RE01MC0-16 R900580383
REXROTH PV7-1X/25-45RE01MC0-08 R900534508
REXROTH PV7-1X/40-45RE37MC0-16 R900580384
REXROTH PV7-1X/40-71RE37MC0-08 R900535588
REXROTH PV7-1X/63-71RE07MC0-16 R900506808
REXROTH PV7-1X/63-94RE07MC0-08 R900560659
REXROTH PV7-1X/100-118RE07MC0-16 R900506809
REXROTH PV7-1X/100-150RE07MC0-08 R900561846
REXROTH PV7-1X/10-14RE01MD0-16 R900504653
REXROTH PV7-1X/10-20RE01MD0-10 R900906584
REXROTH PV7-1X/16-20RE01MD0-16 R900509274
REXROTH PV7-1X/16-30RE01MD0-08 R900560658
REXROTH PV7-1X/25-30RE01MD0-16 R900509506
REXROTH PV7-1X/25-45RE01MD0-08 R900568833
REXROTH PV7-1X/40-45RE37MD0-16 R900593330
REXROTH PV7-1X/40-71RE37MD0-08 R900539886
REXROTH PV7-1X/63-71RE07MD0-16 R900519094
REXROTH PV7-1X/63-94RE07MD0-08 R900574560
REXROTH PV7-1X/100-118RE07MD0-16 R900532770
REXROTH PV7-1X/100-150RE07MD0-08 R900915470
REXROTH PUMP NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH葉片泵PV7-1X/16-30RE01MC0-08 R900533582的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
REXROTH葉片泵PV7系列PV7-1X/16-30RE01MC0-08 R900533582技術參數及選型
