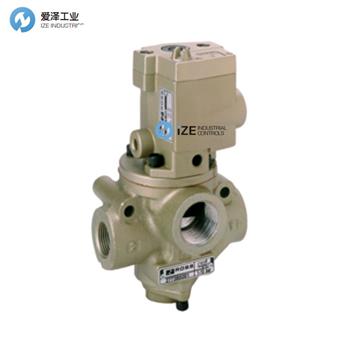

ROSS控制閥D2773B6001Z技術參數
Function | 3/2 Single |
Voltage | 110 VAC |
Return Type | Spring |
Default Position | Normally Closed |
Actuation | Solenoid Controlled |
Port Size (in-Out) | 1 |
Port Size (Exhaust) | 1-1/2 |
Port Thread | BSPP |
Basic Size | 1-1/4 |
Cv (In-Out) | 23 |
Cv (Exhaust) | 34 |
Construction | Poppet |
Mounting | Inline |
Manual Override | Non-locking |
Connector Type | Hard wired (1/2 inch conduit) |
Certifications | SIL |
Flow Media | Filtered Air |
Inlet Pressure Range | 15 TO 150 PSIG (1 TO 10 BAR) |
Media Temperature Range | 40 TO 175 F (4 TO 80 C) |
Ambient Temperature Range | 40 TO 175 F (4 TO 80 C) |
WEIGHT: | 7.0 lbs (3.18 kg) |
ROSS控制閥D2773B6001Z產品描述
27 系列，3/2 單電磁閥控制，彈簧復位，常閉，1" 進出，1-1/2" 排氣 BSPP 110 VAC
27 Series, 3/2 Single Solenoid Controlled, Spring Return, Normally Closed, 1" In-Out,1-1/2" Exhaust BSPP 110 VAC
ROSS控制閥27系列其他常用型號：
ROSS D2773B6001Z
ROSS D2773B2001Z
ROSS D2773B3001Z
ROSS D2773B4001Z
ROSS D2773B4011Z
ROSS D2773B5001Z
ROSS D2773B6001Z
ROSS D2773B6011Z
ROSS D2773B7001Z
ROSS D2773B8001Z
ROSS D2773B8011Z
ROSS D2773B9001Z
ROSS Control Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS控制閥D2773B6001Z的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
