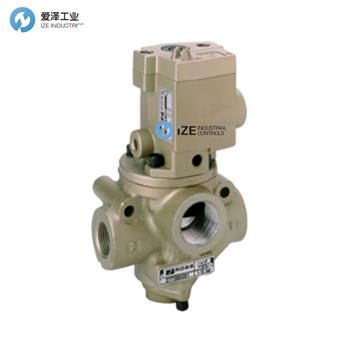

ROSS閥D2776B7003技術參數
CV (EXHAUST) | 27 |
PORT SIZE (IN-OUT) | 2001/1/4 |
PORT SIZE (EXHAUST) | 36893 |
FUNCTION | 4/2 Single |
MANUAL OVERRIDE | Non-locking |
CONNECTOR TYPE | Hard wired (1/2 inch conduit) |
RETURN TYPE | Detented |
ACTUATION | Direct Solenoid Controlled |
PORT THREAD | BSPP |
BASIC SIZE | 2001/1/4 |
CV (IN-OUT) | 2.1 |
CONSTRUCTION | Poppet |
MOUNTING | Inline |
CERTIFICATIONS | SIL |
FLOW MEDIA | Filtered Air |
INLET PRESSURE RANGE | 15 TO 150 PSIG (1 TO 10 BAR) |
MEDIA TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
AMBIENT TEMPERATURE RANGE | 40 TO 175 F (4 TO 80 C) |
WEIGHT | 12.3 lbs (5.58 kg) |
ROSS閥D2776B7003介紹
27 系列，4/2 雙直接電磁閥控制，鎖定，1-1/4" 進出，1-1/2" 排氣 BSPP
27 Series, 4/2 Double Direct Solenoid Controlled, Detented, 1-1/4" In-Out,1-1/2" Exhaust BSPP
ROSS閥27系列其他常用型號：
ROSS D2776B2003
ROSS D2776B3003
ROSS D2776B4013
ROSS D2776B4003
ROSS D2776B5003
ROSS D2776B6013
ROSS D2776B6003
ROSS D2776B7003
ROSS D2776B8013
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥D2776B7003的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
