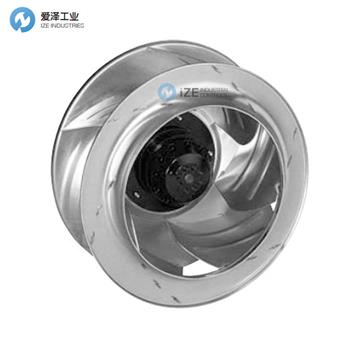

EBMPAPST風機R2E175-AC79-29技術參數
Technical description | |
Weight | 1.3 kg |
Size | 175 mm |
Motor size | 68 |
Rotor surface | Unpainted |
Impeller material | Sheet steel, galvanized |
Number of blades | 16 |
Direction of rotation | Clockwise, viewed toward rotor |
Degree of protection | IP44; installation- and position-dependent |
Insulation class | B |
Moisture (F) / Environmental (H) protection class | H0 - dry environment |
Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
Min. permitted ambient temp. for motor (transport/storage) | - 40 °C |
Installation position | Any |
Condensation drainage holes | None |
Mode | S1 |
Motor mounting | Ball bearing |
Touch current according to IEC 60990 | < 0.75 mA |
Motor protection | Thermal overload protector (TOP) internally connected |
With cable | Variable |
Protection class | I (if the protective earth is connected by the customer to the marked PE connection point) |
Conformity with standards | EN 60335-1; CE |
Approval | CSA C22.2 No. 77; CCC; UL 1004-3 |
EBMPAPST風機R2E系列其他常用型號：
EBMPAPST R2E220-AA44-23
EBMPAPST R2E220-AB08-12
EBMPAPST R2E220-AA40-23
EBMPAPST R2E220-AB08-62
EBMPAPST R2E220-RB86-11
EBMPAPST R2E220-RB86-33
EBMPAPST R2E220-RB86-34
EBMPAPST R2E225-AB13-05
EBMPAPST R2E225-BD92-58
EBMPAPST R2E225-BE47-09
EBMPAPST R2E225-BE51-09
EBMPAPST R2E250-AL03-10
EBMPAPST R2E250-AP07-11
EBMPAPST R2E175-AC79-29
EBMPAPST Centrifugal fans NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機R2E175-AC79-29的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
