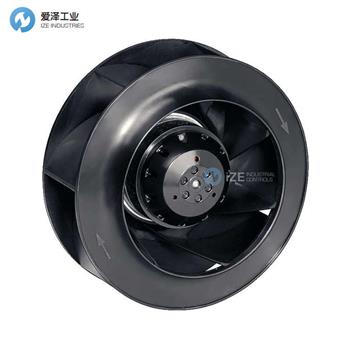

EBMPAPST風機R2E225-BD92-09技術參數
Technical features | |
Leackage current | < 0.75 mA |
Size | 225 mm |
Operation mode | S1 |
Direction of rotation | Clockwise, seen on rotor |
Mounting position | Shaft horizontal or rotor on bottom; rotor on top on request |
Humidity class | F1-2 |
Insulation class | F |
Cable exit | Variable |
Condensate discharge holes | Rotor-side |
Bearing motor | Ball bearing |
Mass | 2.28 kg |
Material of impeller | PA plastic 6, fiberglass-reinforced |
Motor protection | Thermal overload protector (TOP) wired internally |
Product conforming to standard | CE; EN 60335-1 |
Surface of rotor | Coated in black |
Number of blades | 7 |
Type of protection | IP 44; Depending on installation and position as per EN 60034-5 |
Protection class | I |
Max. permissible ambient motor temp. (transp./ storage) | + 80 °C |
Min. permissible ambient motor temp. (transp./storage) | - 40 °C |
Approval | CCC |
EBMPAPST風機R2E系列其他常用型號：
EBMPAPST R2E225-BD92-36
EBMPAPST R2E225-BE47-09
EBMPAPST R2E225-BD92-09
EBMPAPST R2E225-RA92-09
EBMPAPST R2E225-BE51-09
EBMPAPST R2E225-BD92-37
EBMPAPST R2E225-AT51-05
EBMPAPST R2E225-AX52-05
EBMPAPST R2E225-RA92-17
EBMPAPST R2E225-BB47-09
EBMPAPST FANS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機R2E225-BD92-09的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
