ROSS閥W60系列技術參數
Construction Design | Spool and Sleeve |
Mounting Type | Base |
Flow Media | Filtered air |
Construction Material | Valve Body: Bar Stock Aluminum |
Pressure Controlled Valves | |
Temperature | Ambient/Media: 40° to 175°F (4° to 80°C) |
Operating Pressure | Vacuum to 150 psig (10 bar) |
Solenoid Pilot Controlled Valves | |
Solenoids | Rated for continuous duty |
Voltage | 24 volts DC; 110-120 volts AC, 50/60 Hz |
Power Consumption (each solenoid) | 6 watts on DC; 11 VA inrush, 8.5 VA holding on 50 or 60 Hz |
Enclosure Rating | IP65, IEC 60529 |
Electrical Connections | EN 175301-803 Form A connector |
Temperature | Ambient: 40° to 120°F (4 to 50°C) |
Pilot Supply | Internal or External; Selected automatically |
Operating Pressure | Vacuum to 150 psig (10 bar) |
Manual Override | Flush; Metal, non-locking |

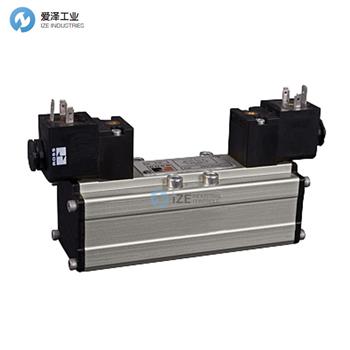

ROSS閥W60系列介紹
ROSS? W60 系列 ISO 5599-1 閥是符合 ISO 5599-1 標準安裝接口的底座式滑閥。這些 ISO 1、2 和 3 型閥提供二位和三位、五通四通兩種配置。電磁先導閥選項包括非鎖定式手動超控，以及內部或外部先導閥供電方式。
閥芯、線軸和套筒選項
先導操作可在低功耗下實現高換擋力。
可選接口尺寸包括：1/8”、1/4”、3/8”、1/2” 和 3/4”
入口壓力從真空到 150 psig (10 bar)
可選配丁腈橡膠和氟橡膠密封件，適用于較寬的溫度范圍
單底座和歧管底座安裝
The ROSS? ISO 5599-1 valves W60 Series are base mounted spool and sleeve valves that conform to the ISO standards 5599-1 mounting interface. These ISO Size 1, 2, and 3 valves are available as, 2- and 3-position, 5-ported 4-way valves. Solenoid pilot options include a non-locking manual override, and either internal or external pilot supply.
Poppet & Spool & Sleeve Options
Pilot operation provides high shifting force with low power consumption
Available port sizes include: 1/8”, 1/4”, 3/8”, 1/2”, and 3/4”
Inlet pressure from vacuum to 150 psig (10 bar)
Available with Buna-N and Flouroelastomer seals for a wide temperature range
Single base and manifold base mounting
ROSS閥W60系列其他常用型號：
ROSS W6076A4929
ROSS W6056B2411
ROSS W6056B2417
ROSS W6056B3411
ROSS W6056B3417
ROSS W6056B4411
ROSS W6056E4417
ROSS W6057A2934
ROSS W6057A3933
ROSS W6057A4937
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS閥W6076A4929的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.www.jguvm.cn.
