NORSAT高頻頭1108HDFF技術參數
KEY SPECIFICATIONS | |
Product Family | 1000 Series |
Band | Ku-Band |
LO Type | PLL |
# of onboard LOs | Dual-band |
LO Stability | +/- 10 kHz |
Noise Figure | 0.8 dB |
Input Frequency - Band 1 | Ku-Band: 10.70 - 11.70 GHz |
Input Frequency - Band 2 | Ku-Band: 11.70 - 12.75 GHz |
Output Frequency 1 | L-Band: 950 - 1950 MHz |
Output Frequency 2 | L-Band: 1100 - 2150 MHz |
RF SPECIFICATIONS | |
LO Frequency 1 | 9.75 GHz |
LO Frequency 2 | 10.60 GHz |
Control Signal 1 | 13 V |
Control Signal 2 | 18 V |
Phase Noise @ 1KHz offset | -70 dBc/Hz |
Phase Noise @ 10KHz offset | -80 dBc/Hz |
Phase Noise @ 100KHz offset | -95 dBc/Hz |
Conversion Gain | 60 dB typ |
Input VSWR | 2.5 : 1 |
Output VSWR | 2.5 : 1 |
Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 12 - 24 V |
Current Drain | 350 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | WR-75 waveguide grooved |
RF Output Connector | F-75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
Temperature - Storage | -40 to +80°C |
PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 128 x 60 x 40 mm |
Weight | 400 g |
NORSAT高頻頭1108HDFF產品介紹

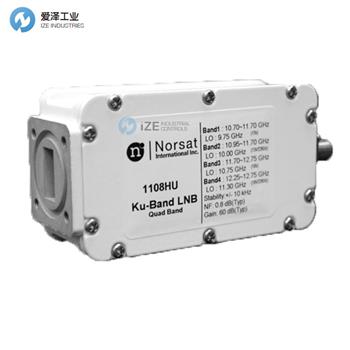

Norsat 1000 Ku-Band (10,70 - 12,75 GHz) Dual Band PLL LNB Model 1108HDFF

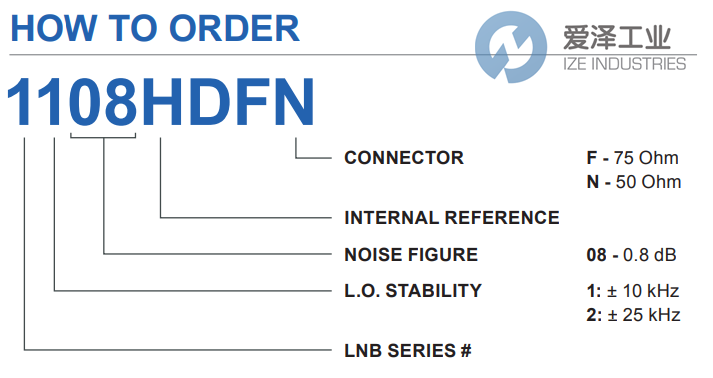

NORSAT高頻頭1000HDF系列選型
NORSAT高頻頭1000系列其他常用型號：
NORSAT 1008XD-2
NORSAT 1007XHAF
NORSAT 1208HUF
NORSAT 1107HBF
NORSAT 1107HAF
NORSAT 1008XEF
NORSAT 1008XDFF
NORSAT 1108HEF
NORSAT 1108HDFF
NORSAT 1008DXF-1
NORSAT 1108DHF-1
NORSAT LOW NOISE BLOCKS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NORSAT高頻頭1108HDFF的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NORSAT products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website:www.www.jguvm.cn.
NORSAT高頻頭1000HDF系列1108HDFF技術參數及選型
