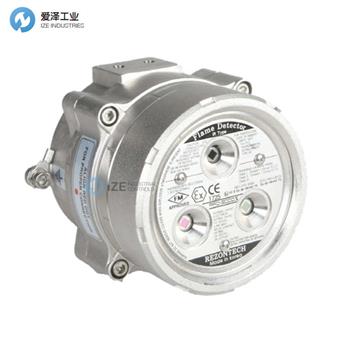

REZONTECH火焰探測器RFD-3000X技術參數
Specification | |
Type : | Triple Infrared |
Detection Range | 200ft(60m(FM), 50m(KFI)) for n-Heptane fire |
Field of View | Horizontal 90° |
Response Characteristics | Typical 5 sec |
200ft(60m(FM), 50m(KFI)) for n-Heptane fire | -40℃ to +75℃ |
Humidity Range | 0 to 95% relative humidity |
performance : | - FM3260 |
Explosion proof : | - Ex d IIB+H2 T5 IP66/67(KGS) |
Output | - Relay |
Structure | |
Dimensions : | W134 x H117 x D110 mm |
Enclosure Material : | Stainless steel 316 |
Shipping Weight : | 4.9 kg |
Color : | Metal |
Conduit Entry Size : | 2 x 1/2 inch NPT, M20X1.5 |
Electrical | |
Operating Voltage : | Typical DC24V (17 to 32) |
Power Consumption : | 3.6W minimum /4.8W maximum at 30 VDC |
Wiring : | 14AWG(2.08mm2) to 24AWG(0.205mm2) shielded cable recommended |
Electromagnetic Compatibility : | Electromagnetic Compatibility : |
REZONTECH火焰探測器RFD-3000X產品介紹
? 多光譜紅外傳感器
? FM、ATEX、IECEx、CCC、NEPSI、KFI 和 KGS 認證
? 具有自動和手動自診斷功能的高可靠性運行
? 增強抗日光和人工誤報源的抗誤報能力
? 防爆和防塵燃認證
? 適用于石油、加油站和石化廠等危險區域
? 優異的耐腐蝕性
? 現場可選靈敏度和延遲時間
? Multispectrum IR sensors
? Approval for FM, ATEX, IECEx, CCC, NEPSI, KFI and KGS
? High reliability in operation with Automatic and Manual Self-Diagnosis
? Enhanced False Alarm Immunity against sunlight and artificial false alarm sources
? Approval for Explosion-Proof and Dust Ignition proof
? Suitable for hazardous areas such as Oil, Gas stations and Petrochemical plants
? Excellent resistance to corrosion
? Field selectable sensitivity and delay time
