REZONTECH火焰探測器RFD-2FTN產品參數
Specification | |
? Type | Ultraviolet and Infrared, Outdoor, Explosion-proof |
? Nominal sensing range | 30m |
? Sensing angle | 100°, Cone type |
? Operating temp. | -40 ~ +75°C |
? Keeping temp. | -50 ~ +90°C |
? Humidity | 0~95% |
Output signal | |
- Relay | Fire 1A ( 250VAC, 30VDC ), A-B connect point |
? Function | - Diagnostic sensor fault enable - Self test |
? Material | Aluminum 6061 |
? Surface | Anodizing Process |
? Color | White silver |
? Weight | About 0.53kg |
? External | 64 × 64 × 75mm, Hexahedral, Connector 1/2 inch PF |
? Power Cunsumption | 5.8W |
? Voltage | DC 24V, ( 17~30V, pulsating current enable) |
? Current | - Idel(Sensing) :100mA |
REZONTECH火焰探測器RFD-2FTN產品介紹
RFD-2FTN是UV / IR型火焰探測器。
當紫外線和紅外線傳感器同時檢測到火焰時，可以識別火災。
100度視錐范圍的最大檢測范圍為30米。
允許在危險區域內操作。
用戶可在繼電器，4-20?步進輸出和RS-485中選擇輸出選項。

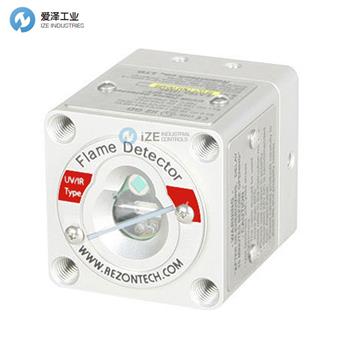

RFD-2FTN is a UV/IR type Flame Detector.
Identify fire when both UV and IR sensors simultaneously detect the presence of a flame.
Maximum 30 meters of detection range with a 100 degree cone of vision.
Permits operation at Hazardous areas.
User selectable output options among Relays, 4-20? stepped output, and RS-485.
REZONTECH火焰探測器RFD-2FTN其他常見型號：
REZONTECH RFD-2000X
REZONTECH RFD-2000X-H
REZONTECH RFD-2000
REZONTECH RFD-2FTN
REZONTECH RFD-2TN
REZONTECH RFD-2FT5-I
REZONTECH RFD-3000X
REZONTECH RFD-3000
REZONTECH RFD-3FT
REZONTECH RFD-3T
REZONTECH Flame Detector NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REZONTECH火焰探測器RFD-2FTN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REZONTECH products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: .
